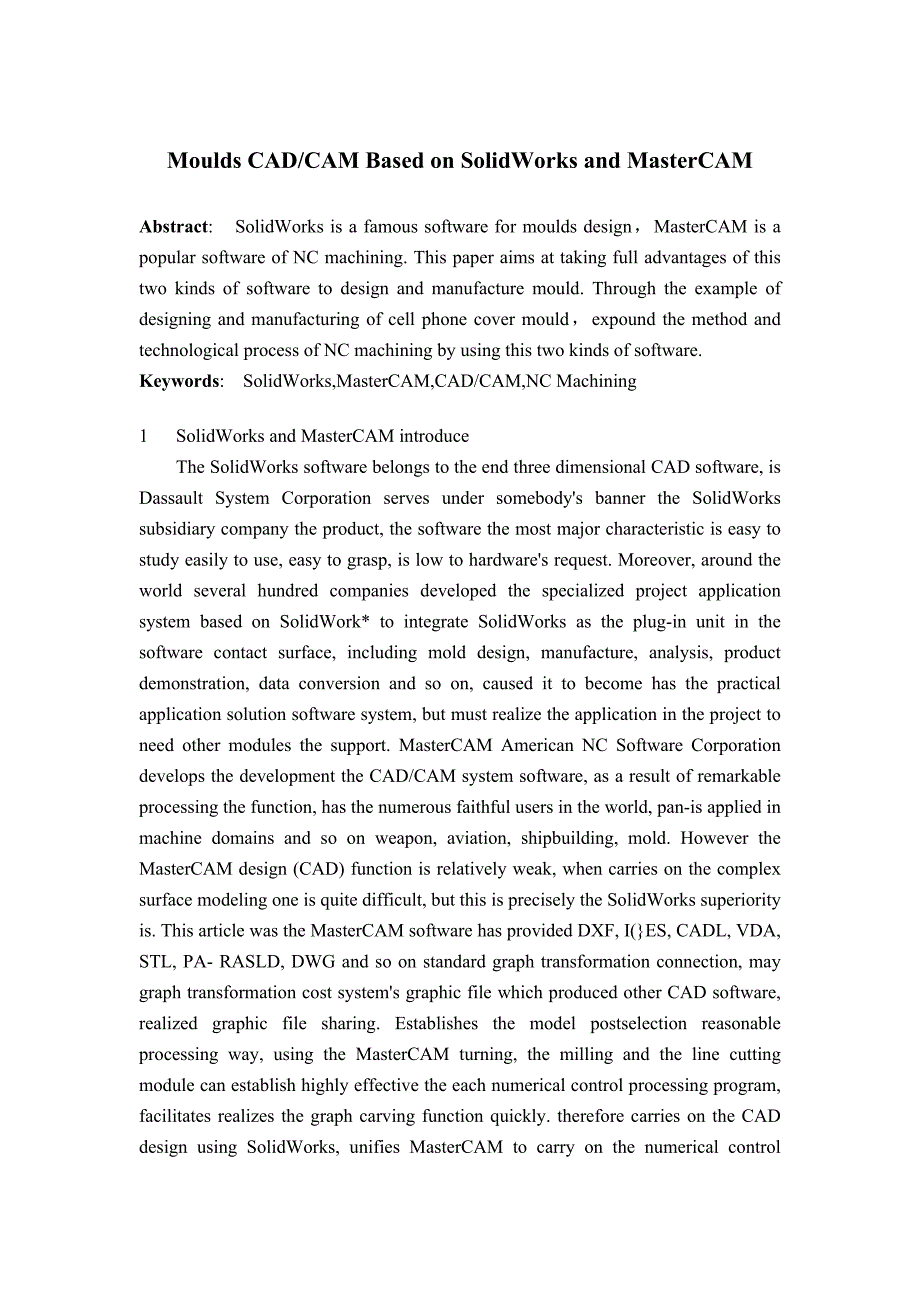

1、相关中英文翻译资料 资料题目：基于SolidWorks和MasterCAM一体的CAD/ CAM研究 学生姓名：所在院系：机电学院所学专业：机电技术教育Moulds CAD/CAM Based on SolidWorks and MasterCAMAbstract: SolidWorks is a famous software for moulds design，MasterCAM is a popular software of NC machining. This paper aims at taking full advantages of this two kinds of soft
2、ware to design and manufacture mould. Through the example of designing and manufacturing of cell phone cover mould，expound the method and technological process of NC machining by using this two kinds of software.Keywords: SolidWorks,MasterCAM,CAD/CAM,NC Machining1 SolidWorks and MasterCAM introduce
3、The SolidWorks software belongs to the end three dimensional CAD software, is Dassault System Corporation serves under somebodys banner the SolidWorks subsidiary company the product, the software the most major characteristic is easy to study easily to use, easy to grasp, is low to hardwares request
4、 Moreover, around the world several hundred companies developed the specialized project application system based on SolidWork* to integrate SolidWorks as the plug-in unit in the software contact surface, including mold design, manufacture, analysis, product demonstration, data conversion and so on,
5、 caused it to become has the practical application solution software system, but must realize the application in the project to need other modules the support. MasterCAM American NC Software Corporation develops the development the CAD/CAM system software, as a result of remarkable processing the fu
6、nction, has the numerous faithful users in the world, pan-is applied in machine domains and so on weapon, aviation, shipbuilding, mold. However the MasterCAM design (CAD) function is relatively weak, when carries on the complex surface modeling one is quite difficult, but this is precisely the Solid
7、Works superiority is. This article was the MasterCAM software has provided DXF, I(ES, CADL, VDA, STL, PA- RASLD, DWG and so on standard graph transformation connection, may graph transformation cost systems graphic file which produced other CAD software, realized graphic file sharing. Establishes th
8、e model postselection reasonable processing way, using the MasterCAM turning, the milling and the line cutting module can establish highly effective the each numerical control processing program, facilitates realizes the graph carving function quickly. therefore carries on the CAD design using Solid

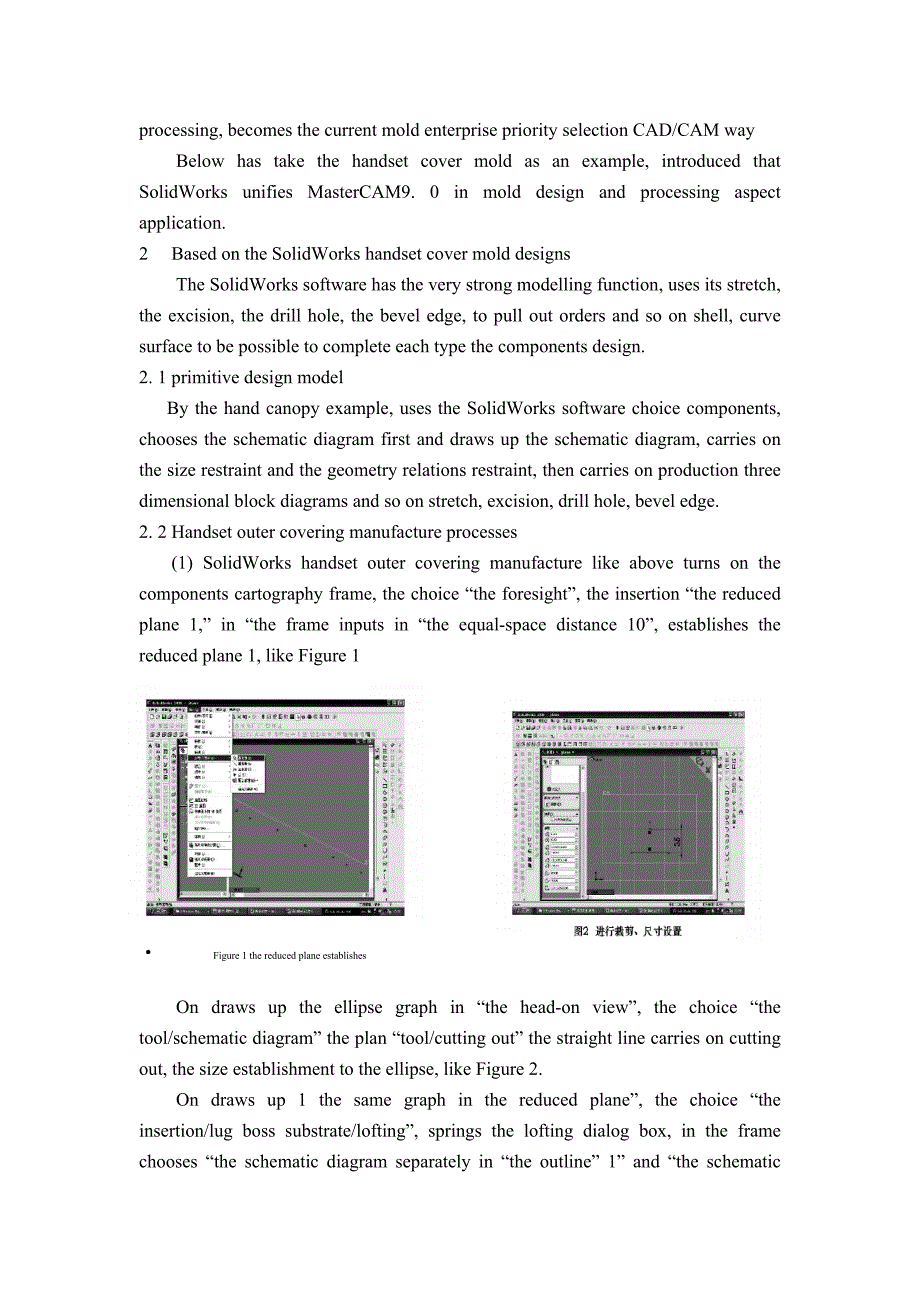

9、Works, unifies MasterCAM to carry on the numerical control processing, becomes the current mold enterprise priority selection CAD/CAM wayBelow has take the handset cover mold as an example, introduced that SolidWorks unifies MasterCAM9. 0 in mold design and processing aspect application. 2 Based on
10、the SolidWorks handset cover mold designsThe SolidWorks software has the very strong modelling function, uses its stretch, the excision, the drill hole, the bevel edge, to pull out orders and so on shell, curve surface to be possible to complete each type the components design.2. 1 primitive design
11、modelBy the hand canopy example, uses the SolidWorks software choice components, chooses the schematic diagram first and draws up the schematic diagram, carries on the size restraint and the geometry relations restraint, then carries on production three dimensional block diagrams and so on stretch,
12、excision, drill hole, bevel edge. 2. 2 Handset outer covering manufacture processes (1) SolidWorks handset outer covering manufacture like above turns on the components cartography frame, the choice “the foresight”, the insertion “the reduced plane 1,” in “the frame inputs in “the equal-space distan
13、ce 10”, establishes the reduced plane 1, like Figure 1 Figure 1 the reduced plane establishes On draws up the ellipse graph in “the head-on view”, the choice “the tool/schematic diagram” the plan “tool/cutting out” the straight line carries on cutting out, the size establishment to the ellipse, like
14、 Figure 2. On draws up 1 the same graph in the reduced plane”, the choice “the insertion/lug boss substrate/lofting”, springs the lofting dialog box, in the frame chooses “the schematic diagram separately in “the outline” 1” and “the schematic diagram 2”, selects on the graph the superficial sidelin
15、e to its round angle, the radius is 10 mm, like Figure 3The choice “the tool/schematic diagram plan entity/writing” on the graph the superficial plan writing, then the click “stretches the lug boss/substrate” the button, depth 1mm, effect like chart 4(2)The Mastercam handset outer covering simulatio
16、n processes Opens the Mastercam operation contact surface, clicks on File/Converters/IGES/Read file, found saves the document and opens, then completed Solidworks and the Mastercam graphic file transformation, as shown in Figure 5 Then passes through the different stepProcessing spot selection,Cutti
17、ng tool choice,Cutting tool parameter establishment (Figure 6),Processing way establishment,Rough machining parameter establishment,Establishments and so on precision work parameter establishment, complete the hand cabinets numerical control automatic programming) to select the chart not sideline an
18、d to carry on the establishment finally according to the chart.Completes above each technological parameter establishment, passes through the following processing step simulation (Figure 7 to take shape finally like Figure 8.Contour milling;In writing superficial milling;On shell superficial milling
19、Circumference rough machining;System generation procedure (Figure 9).Using MasterCAM9. 0 post-processing modules, select the engine bed correspondence numerical control systems post processor to produce the numerical control procedure. Selects MPFAN. PST document MasterCAM9. 0 will produce suits th
20、is engine bed movement the numerical control procedure. The MasterCAM software system has developed in view of many numerical control systems with it match post-processing document (for example FANUC, SIEMENS, MITSUBISHI and so on), the selection corresponding post-processing document, then the dire
21、ct production specific numerical control system needs numerical control processing program. Because this system is the domestically produced Nanjing Huaxing 21M numerical control system, in the MasterCAM software system not the post-processing document which matches with it, the automatic production
22、s NC procedure cannot the direct transmission carry on the processing for the numerically-controlled machine tool, needs to make the simple revision. The revision finished then the file transfer for the numerically-controlled machine tool, completed the work piece the processing.Has mainly made the
23、following three aspect revision to the automatic productions numerical control procedure. Obliterates the procedure to begin, section tail some regarding the system not essential explanation explanatory procedure code, uses in exchange cutting tools explanation among the procedure also to delete. Fo
24、r example: % 00000 (PROGRAM NAME一BB1) (DATE=DD一MM一YY一06一05 TIME=HH:MM一10;45) N0 G21 N2 GO G17 G40 G49 G80 G90 (16. FLAT ENDMILL TOOL.一1 DIA.OFF.一1. LEN. 一1DIA. 一4） Obliterates the wooden system definition the instruction-code. For example: N4T1 M6 obliterates M6; N 6 G 0 G 90 X 170. Y 190. A0. S5OOM
25、3 obliterates AOReplaces in the procedure with this system expression way different procedure code (for example form, mark and so on), enables the system the correct recognizer, gains ideal processing components For example: N8 G43 H1 Z50 recasts N8 G42G01 Z50; N1922M30 recasts N 1922 M02 2 Conclusi
26、on Introduced the SolidWorks software and the MasterCAM 9. 0 softwares functional module and the work flow. Introduced the SolidWorks software and the MasterCAM 9. 0 softwares some base wooden operation in detail take the handset outer covering teaching model as the example, including CAD components
27、 geometric modeling, CAM components analog simulation processing, NC code post-processing process three parts. In addition, but also introduced the SolidWorks software and the MasterCAM software graphic file transformation. Its intellectualized 3D cartography function and MasterCAM software has the
28、graphic file transformation interface function unifies closely, realizes superior the design. SolidWorks softwares CAD superiority and MasterCAM softwares CAM superiority organic synthesis, may reduce the user to design and the processing cam time precisely greatly. Reference 1 ultra, Zhang Baoshu.
29、Based on pro/engineer and MasterCAM mold CAD/CAM casting technique, 2007(4); 5,191,5222 Lu Rongming. Designs and processes CAD/CAM and the manufacturing industry informationization based on pro/engineer and the MasterCAM mold, 2006(9)107yi108 基于SolidWorks和MasterCAM一体的CAD/ CAM研究摘要: SolidWorks是著名的CAD设
30、计软件，而MasterCAM是流行的数控加工软件。充分结合两者一优点对模具进行设计和制造。通过手机盖模具设计和加工实例，阐述了使用这两种软件进行模具设计与加工的方法和流程。关键词: SolidWorks，MasterCAM，CAD/CAM数控加工1 SolidWorks和MasterCAM简介SolidWorks软件属于中端三维CAD软件，是Dassault System公司旗下SolidWorks子公司的产品，软件最大的特点是易学易用，容易掌握，对硬件的要求较低。另外，在世界范围内有数百家公司基于SolidWork*开发了专业的工程应用系统作为插件集成到SolidWorks的软件界面中，其中
31、包括模具设计、制造、分析、产品演示、数据转换等等，使它成为具有实际应用解决方案的软件系统，但在工程中要实现应用需要其它模块的支持。MasterCAM美国NC Software公司所开发研制的CAD/CAM系统软件，由于卓越的加工功能，在世界上拥有众多的忠实用户，被泛应用于机械、航空、造船、模具等领域。然而MasterCAM的设计(CAD)功能相对薄弱，在进行复杂曲面造型时一比较困难，而这正是SolidWorks的优势所在。本文为MasterCAM软件提供了DXF , I(ES , CADL , VDA , STL, PA-RASLD , DWG等标准图形转换接口，可以把其他CAD软件生成的图形
32、转变成本系统的图形文件，实现图形文件共享。建立完模型后选择合理的加工方式，利用MasterCAM的车削、铣削和线切割模块能高效地编制各种数控加工程序，方便快捷地实现图形的雕刻功能。因此利用SolidWorks进行CAD设计，结合MasterCAM进行数控加工，就成为当前模具企业优先选择的CAD/CAM方式，下面以手机盖模具为例，介绍SolidWorks结合MasterCAM9. 0在模具设计和加工方面的应用。2基于SolidWorks的手机盖模具设计SolidWorks软件具有很强的建模功能，利用其拉伸、切除、钻孔、倒角、抽壳、曲线曲面等命令可以完成各种类型的零件设计。2. 1原始设计模型以手
33、机盖例，利用SolidWorks软件选择零件，先选择草图并绘制草图，进行尺寸约束和几何关系约束，然后进行拉伸、切除、钻孔、倒角等生成三维立体图。2. 2手机外壳制作加工(1) SolidWorks手机外壳制作如上面打开零件绘图框，选择“前视”，插入“基准面1，在“等距距离”框中输入“10，建立基准面1,如图1图1基准面建立在“前视面”上绘制椭圆图形，选择“工具/草图” 绘制“工具/裁剪”直线对椭圆进行裁剪、尺寸设置，如图2。在“基准面 1”上绘制同样图形，选择“插入/凸台基体/放样”，弹出放样对话框，在“轮廓”框中分别选择“草图1”和“草图2，选取图形上表面的边线对其倒圆角，半径为10 mm，
34、如图3选择“工具/草图绘制实体/文字”在图形上表面绘制文字，然后点击“拉伸凸台/基体”按钮，深度1mm，效果如图4( 2 ) Mastercam手机外壳模拟加工打开Mastercam操作界面，点击File/Converters/IGES/Read file，找到所存文件并打开，即可完成Solidworks与Mastercam图形文件的转换，如图5所示。 然后经过不同步骤的加工部位选取、刀具选择、刀具参数设置(图6) ,加工路径设置、粗加工参数设置、精加工参数设置等设置，最终完成手机壳的数控自动编程)选取图不边线并按图进行设置。完成上述各种工艺参数设置，经过下述加工步骤仿真(图7最终成型如图8
35、外形铣削;文字上表面铣削;壳体上表面铣削;圆周粗加工;系统生成程序(图9)。利用MasterCAM9. 0后置处理模块，选用机床对应数控系统的后置处理程序来生成数控程序。选用MPFAN. PST文件则MasterCAM9. 0将生成适合该机床运行的数控程序。MasterCAM软件系统针对许多数控系统开发了与之匹配的后处理文件(如FANUC , SIEMENS ,MITSUBISHI等)，选取相应后处理文件，即可直接生成特定数控系统所需的数控加工程序。由于此系统是国产的南京华兴21M数控系统，MasterCAM软件系统中没有与之相匹配的后处理文件，自动生成的NC程序不能直接传送给数控机床进行加
36、工，需要进行简单的修改。修改完毕即可将文件传输给数控机床，完成工件的加工。对自动生成的数控程序主要进行了以下三方面的修改。删去程序开头、段尾一些对于系统没必要的说明解释性的程序代码，在程序中间换用刀具的说明也应删除。 例如: % 00000 (PROGRAM NAME一BB1) (DATE=DD一MM一YY一06一05 TIME=HH:MM一10;45) N0 G21 N2 GO G17 G40 G49 G80 G90 (16. FLAT ENDMILL TOOL.一1 DIA.OFF.一1. LEN. 一1DIA. 一4）删去木系统没有定义的指令代码。例如: N4T1 M6删去M6; N6G
37、0G90X一70. Y一90. A0. S5OOM3删去AO替换程序中与本系统表示方式不同的程序代码(如格式、符号等)，使系统能够正确识别程序，获取理想的加工零件 例如: N8 G43 H1 Z50改作N8 G42G01 Z50 ; N1922M30改作N 1922 M023结语介绍了SolidWorks软件和MasterCAM 9. 0软件的功能模块和工作流程。以手机外壳教学模型为例详细介绍了SolidWorks软件和MasterCAM 9. 0软件的一些基木操作，包括CAD零件的几何造型,CAM零件的模拟仿真加工、NC代码的后处理过程三部分。此外，还介绍了SolidWorks软件与MasterCAM软件图形文件的转换。将其智能化的3D绘图功能和MasterCAM软件具有的图形文件转换接口功能紧密结合起来，实现优化设计。将SolidWorks软件的CAD优势和MasterCAM软件的CAM优势有机结合，可以大大缩短用户精确设计与加工凸轮的时间。参考文献1门超，张宝树.基于pro/engineer与MasterCAM的模具CAD/CAM铸造技术，2007(4);519一5222陆荣明. 基于pro/engineer与MasterCAM的模具设计与加工CAD/CAM与制造业信息化，2006(9)107一108
