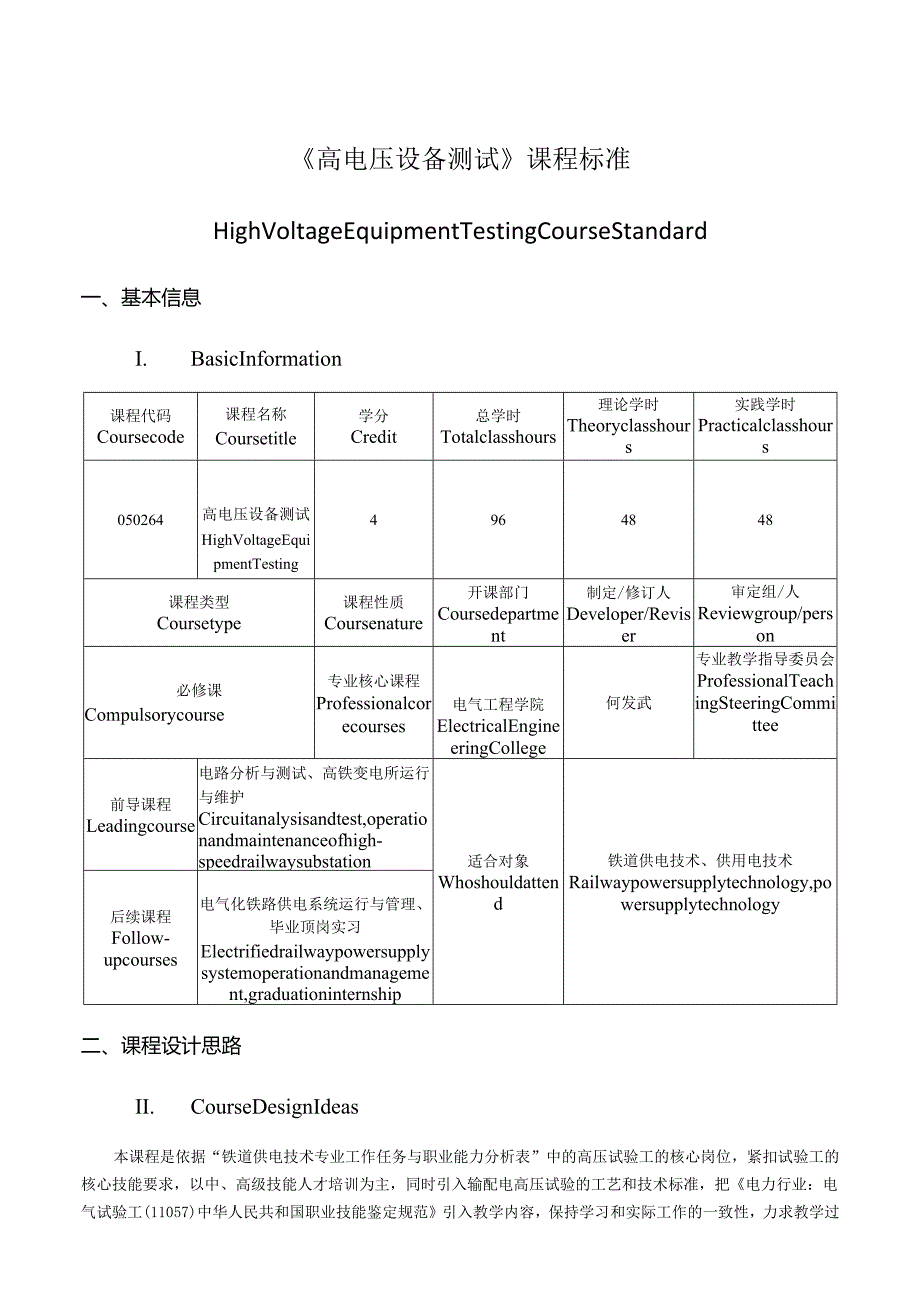

1、高电压设备测试课程标准HighVoltageEquipmentTestingCourseStandard一、基本信息I. BasicInformation课程代码Coursecode课程名称Coursetitle学分Credit总学时Totalclasshours理论学时Theoryclasshours实践学时Practicalclasshours050264高电压设备测试HighVoltageEquipmentTesting4964848课程类型Coursetype课程性质Coursenature开课部门Coursedepartment制定/修订人Developer/Reviser审定组/人

2、Reviewgroup/person必修课Compulsorycourse专业核心课程Professionalcorecourses电气工程学院ElectricalEngineeringCollege何发武专业教学指导委员会ProfessionalTeachingSteeringCommittee前导课程Leadingcourse电路分析与测试、高铁变电所运行与维护Circuitanalysisandtest,operationandmaintenanceofhigh-speedrailwaysubstation适合对象Whoshouldattend铁道供电技术、供用电技术Railwaypow

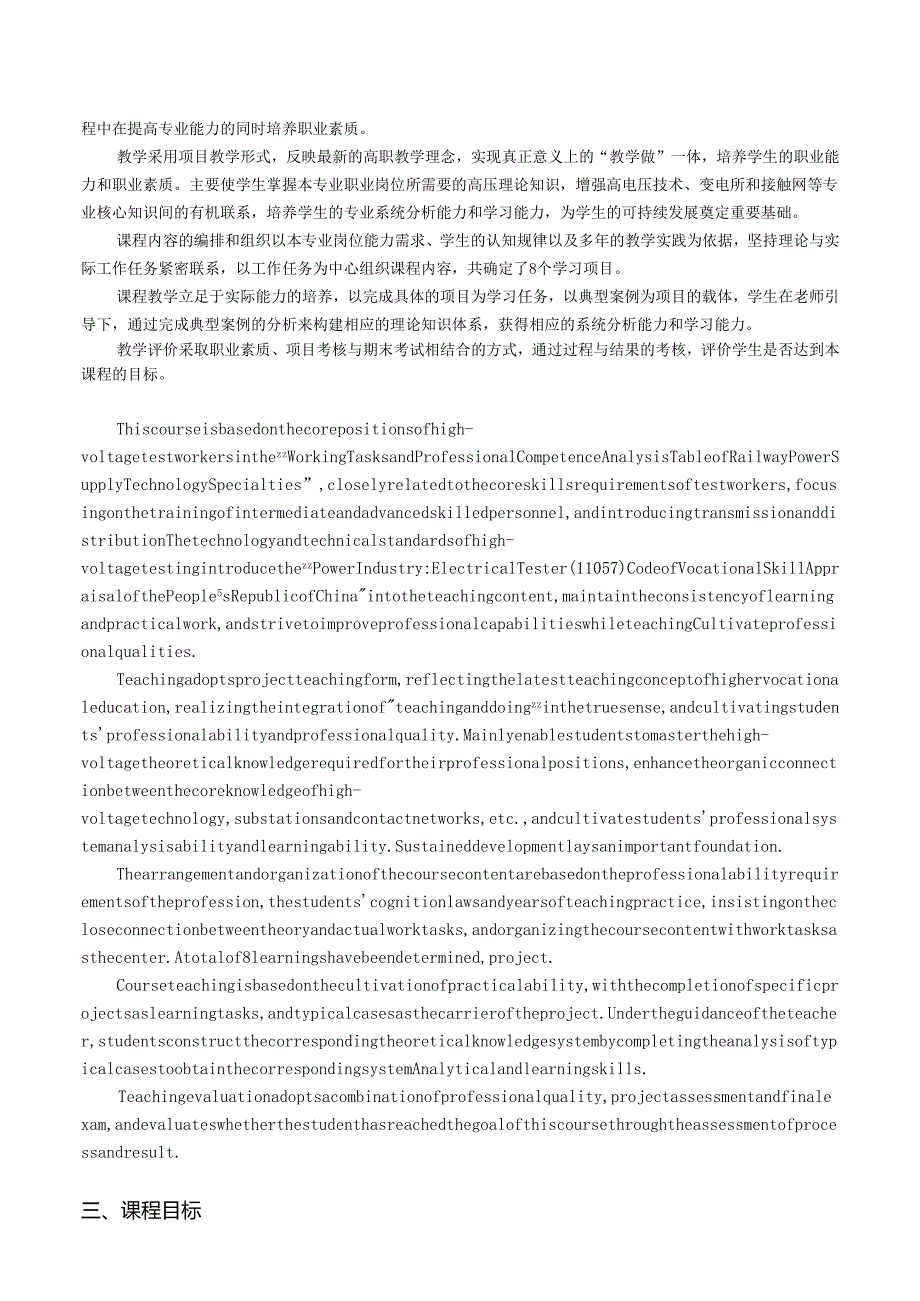

3、ersupplytechnology,powersupplytechnology后续课程Follow-upcourses电气化铁路供电系统运行与管理、毕业顶岗实习Electrifiedrailwaypowersupplysystemoperationandmanagement,graduationinternship二、课程设计思路II. CourseDesignIdeas本课程是依据“铁道供电技术专业工作任务与职业能力分析表”中的高压试验工的核心岗位,紧扣试验工的核心技能要求,以中、高级技能人才培训为主,同时引入输配电高压试验的工艺和技术标准,把电力行业:电气试验工(11057)中华人民共和

4、国职业技能鉴定规范引入教学内容,保持学习和实际工作的一致性,力求教学过程中在提高专业能力的同时培养职业素质。教学采用项目教学形式,反映最新的高职教学理念,实现真正意义上的“教学做”一体,培养学生的职业能力和职业素质。主要使学生掌握本专业职业岗位所需要的高压理论知识,增强高电压技术、变电所和接触网等专业核心知识间的有机联系,培养学生的专业系统分析能力和学习能力,为学生的可持续发展奠定重要基础。课程内容的编排和组织以本专业岗位能力需求、学生的认知规律以及多年的教学实践为依据,坚持理论与实际工作任务紧密联系,以工作任务为中心组织课程内容,共确定了8个学习项目。课程教学立足于实际能力的培养,以完成具体

5、的项目为学习任务,以典型案例为项目的载体,学生在老师引导下,通过完成典型案例的分析来构建相应的理论知识体系,获得相应的系统分析能力和学习能力。教学评价采取职业素质、项目考核与期末考试相结合的方式,通过过程与结果的考核,评价学生是否达到本课程的目标。Thiscourseisbasedonthecorepositionsofhigh-voltagetestworkersinthezzWorkingTasksandProfessionalCompetenceAnalysisTableofRailwayPowerSupplyTechnologySpecialties”,closelyrelatedto

6、thecoreskillsrequirementsoftestworkers,focusingonthetrainingofintermediateandadvancedskilledpersonnel,andintroducingtransmissionanddistributionThetechnologyandtechnicalstandardsofhigh-voltagetestingintroducethezzPowerIndustry:ElectricalTester(11057)CodeofVocationalSkillAppraisalofthePeople5sRepublic

7、ofChinaintotheteachingcontent,maintaintheconsistencyoflearningandpracticalwork,andstrivetoimproveprofessionalcapabilitieswhileteachingCultivateprofessionalqualities.Teachingadoptsprojectteachingform,reflectingthelatestteachingconceptofhighervocationaleducation,realizingtheintegrationofteachinganddoi

8、ngzzinthetruesense,andcultivatingstudentsprofessionalabilityandprofessionalquality.Mainlyenablestudentstomasterthehigh-voltagetheoreticalknowledgerequiredfortheirprofessionalpositions,enhancetheorganicconnectionbetweenthecoreknowledgeofhigh-voltagetechnology,substationsandcontactnetworks,etc.,andcul

9、tivatestudentsprofessionalsystemanalysisabilityandlearningability.Sustaineddevelopmentlaysanimportantfoundation.Thearrangementandorganizationofthecoursecontentarebasedontheprofessionalabilityrequirementsoftheprofession,thestudentscognitionlawsandyearsofteachingpractice,insistingonthecloseconnectionb

10、etweentheoryandactualworktasks,andorganizingthecoursecontentwithworktasksasthecenter.Atotalof8learningshavebeendetermined,project.Courseteachingisbasedonthecultivationofpracticalability,withthecompletionofspecificprojectsaslearningtasks,andtypicalcasesasthecarrieroftheproject.Undertheguidanceofthete

11、acher,studentsconstructthecorrespondingtheoreticalknowledgesystembycompletingtheanalysisoftypicalcasestoobtainthecorrespondingsystemAnalyticalandlearningskills.Teachingevaluationadoptsacombinationofprofessionalquality,projectassessmentandfinalexam,andevaluateswhetherthestudenthasreachedthegoalofthis

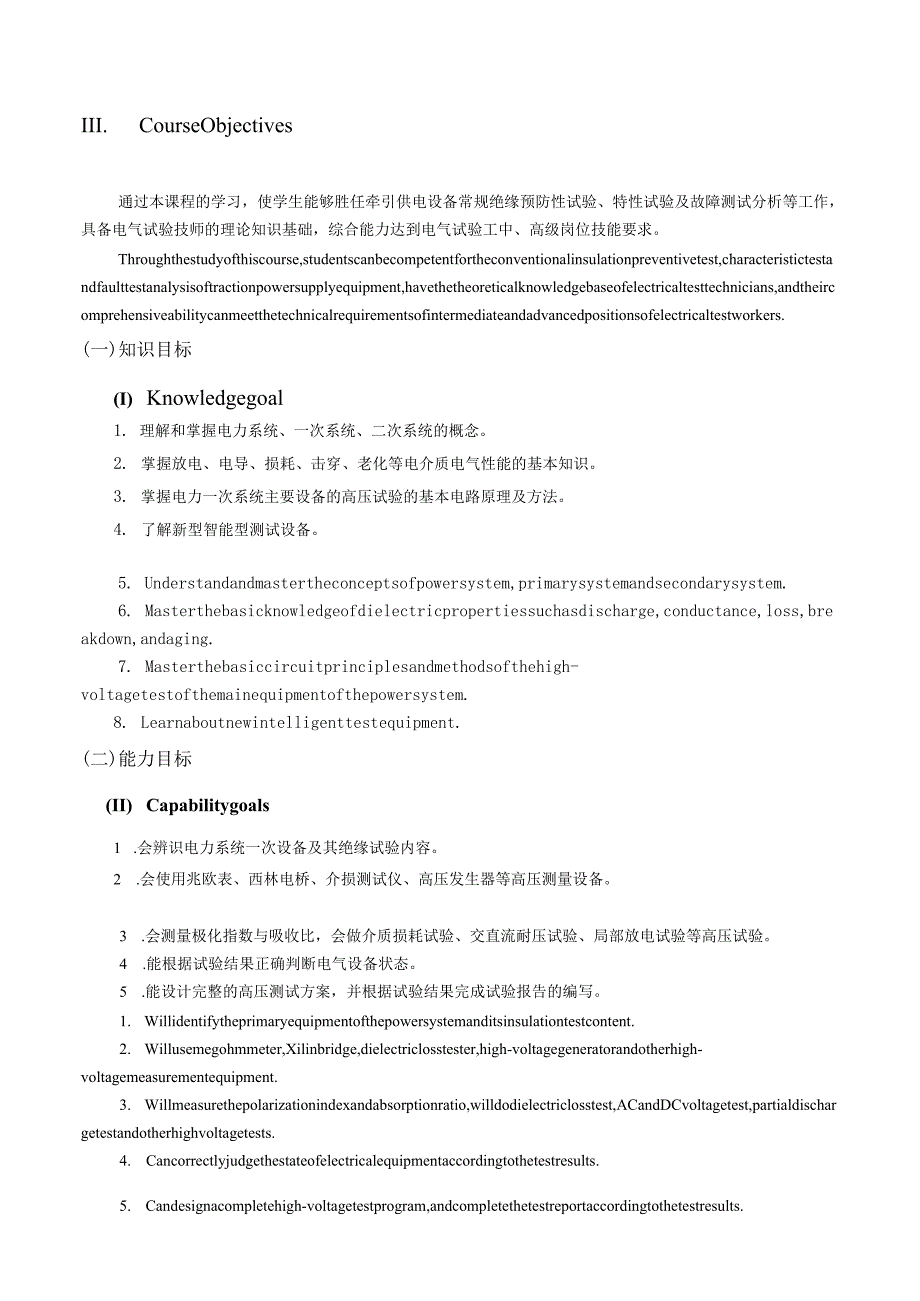

12、coursethroughtheassessmentofprocessandresult.三、课程目标III. CourseObjectives通过本课程的学习,使学生能够胜任牵引供电设备常规绝缘预防性试验、特性试验及故障测试分析等工作,具备电气试验技师的理论知识基础,综合能力达到电气试验工中、高级岗位技能要求。Throughthestudyofthiscourse,studentscanbecompetentfortheconventionalinsulationpreventivetest,characteristictestandfaulttestanalysisoftractionpo

13、wersupplyequipment,havethetheoreticalknowledgebaseofelectricaltesttechnicians,andtheircomprehensiveabilitycanmeetthetechnicalrequirementsofintermediateandadvancedpositionsofelectricaltestworkers.(一)知识目标(I) Knowledgegoal1. 理解和掌握电力系统、一次系统、二次系统的概念。2. 掌握放电、电导、损耗、击穿、老化等电介质电气性能的基本知识。3. 掌握电力一次系统主要设备的高压试验的基

14、本电路原理及方法。4. 了解新型智能型测试设备。5. Understandandmastertheconceptsofpowersystem,primarysystemandsecondarysystem.6. Masterthebasicknowledgeofdielectricpropertiessuchasdischarge,conductance,loss,breakdown,andaging.7. Masterthebasiccircuitprinciplesandmethodsofthehigh-voltagetestofthemainequipmentofthepowersyst

15、em.8. Learnaboutnewintelligenttestequipment.(二)能力目标(II) Capabilitygoals1 .会辨识电力系统一次设备及其绝缘试验内容。2 .会使用兆欧表、西林电桥、介损测试仪、高压发生器等高压测量设备。3 .会测量极化指数与吸收比,会做介质损耗试验、交直流耐压试验、局部放电试验等高压试验。4 .能根据试验结果正确判断电气设备状态。5 .能设计完整的高压测试方案,并根据试验结果完成试验报告的编写。1. Willidentifytheprimaryequipmentofthepowersystemanditsinsulationtestcont

16、ent.2. Willusemegohmmeter,Xilinbridge,dielectriclosstester,high-voltagegeneratorandotherhigh-voltagemeasurementequipment.3. Willmeasurethepolarizationindexandabsorptionratio,willdodielectriclosstest,ACandDCvoltagetest,partialdischargetestandotherhighvoltagetests.4. Cancorrectlyjudgethestateofelectri

17、calequipmentaccordingtothetestresults.5. Candesignacompletehigh-voltagetestprogram,andcompletethetestreportaccordingtothetestresults.(三)素养目标(III) Literacygoals1 .遵章守纪,团结协作。2 .安全生产,规范操作。3 .吃苦耐劳,敬业爱岗。4 .自主学习,钻研创新。1. Abidebyrulesandregulations,uniteandcooperate.2. Safeproductionandstandardoperation.3.

18、Hardwork,hardworkandlove.4. Studyindependentlyanddelveintoinnovation.四、课程内容及学时安排IV.CourseContent序号No.课程模块名称Coursemodulename主要学习内容及要求Mainlearningcontentandrequirements学时(理论+实践)Theoryandpracticalclasshours1常用电气设备辨识Identificationofcommonelectricalequipment学习内容:Learningcontent:1 .常用一次高压设备2 .常用绝缘材料特性3 .安

19、全用具使用1. Commonlyusedhigh-voltageequipment2. Characteristicsofcommonlyusedinsulatingmaterials3. Useofsafetyequipment具体要求:Specificrequirements:1 .了解高压试验安全用具2 .了解电力变压器、互感器、断路器与隔离开关、避雷器绝缘3 .认知绝缘介质及放电机理4 .识别常用绝缘材料1. Understandthehigh-pressuretestsafetyequipment2. Understandtheinsulationofpowertransformer

20、s,transformers,circuitbreakersandisolatingswitches,surgearresters3. Recognizetheinsulatingmediumanddischargemechanism4. Identifycommonlyusedinsulatingmaterials10(10+0)2电力变压器试验Powertransformertest学习内容:Learningcontent:1 .变压器结构及特性2 .变压器预防性试验3 .变压器特性试验1. Transformerstructureandcharacteristics2. Transfor

21、merpreventivetest3. Transformercharacteristictest具体要求:Specificrequirements:1 .掌握绝缘电阻、吸收比、极化指数测量2 .掌握直流电阻测量3 .掌握变压器变比、极性和组别测量4 .掌握泄漏电流测量技能5 .掌握介质损失正切tg6试验6 .掌握交流耐压试验7 .掌握变压器油色谱分析8 .了解变压器现场巡视与异常处理1. Masterthemeasurementofinsulationresistance,absorptionratio,polarizationindex2. MasterDCresistancemeasur

22、ement3. Mastertransformerratio,polarityandgroupmeasurement4. Masterleakagecurrentmeasurementskills5. Masterthemediumlosstangenttgtest6. MastertheACwithstandvoltagetest7. Masterthechromatographicanalysisoftransformeroil8. Understandtransformersiteinspectionandabnormalhandling20(8+12)3互感器试验Transformer

23、test学习内容:Learningcontent:1 .互感器结构及特性2 .互感器预防性试验3 .互感器特性试验1. Transformerstructureandcharacteristics2. Transformerpreventivetest3. Transformercharacteristictest具体要求:Specificrequirements:L掌握绝缘电阻测量2 .掌握交流耐压试验3 .掌握电压互感器介损测量4 .掌握极性、变比和励磁特性试验5 .掌握局部放电1. Masterinsulationresistancemeasurement2. MastertheACwi

24、thstandvoltagetest3. Mastervoltagetransformerdielectriclossmeasurement4. Graspthepolarity,transformationratioandexcitationcharacteristicstest5. Masterpartialdischarge12(4+8)4高压开关电器试验Highvoltageswitchelectricaltest学习内容:Learningcontent:1 .开关结构及特性2 .开关预防性试验1. Switchstructureandcharacteristics2. Switchp

25、reventivetest具体要求:Specificrequirements:1 .掌握断路器绝缘电阻与介损测量2 .掌握断路器合分闸时间、速度和动作电压测定3 .掌握断路器交流耐压测试4 .掌握隔离开关试验1. Masterinsulationresistanceanddielectriclossmeasurementofcircuitbreaker2. Graspthecircuitbreakerclosingandopeningtime,speedandoperatingvoltagemeasurement3. MasterthecircuitbreakerACwithstandvolt

26、agetest4. Mastertheisolationswitchtest16(8+8)5防雷设备测试Lightningprotectionequipmenttest学习内容:Learningcontent:L输电线路防护2 .避雷器结构及特性3 .避雷器预防性试验1. Transmissionlineprotection2. Arresterstructureandcharacteristics3. Preventivetestoflightningarrester具体要求:Specificrequirements:L掌握变电所雷电防护2 .了解避雷针试验3 .掌握避雷器试验方法1. Ma

27、sterthelightningprotectionofthesubstation2. Understandthelightningrodtest3. Masterthetestmethodoflightningarrester6(4+2)6电力电容器、电力电缆和套管及绝缘子试验Testingofpowercapacitors,powercablesandbushingsandinsulators学习内容:Learningcontent:1 .电容器、电缆和套管及绝缘子结构2 .电容器、电缆和套管及绝缘子预防性试验1. Capacitor,cableandbushingandinsulator

28、structure2. Preventivetestsforcapacitors,cables,bushingsandinsulators具体要求:Specificrequirements:1 .掌握电力电容器试验项目及方法2 .掌握电力电容器交流耐压试验3 .掌握电力电缆试验4 .掌握绝缘子试验5 .掌握套管试验1. Masterthetestitemsandmethodsofpowercapacitors2. MastertheACvoltagetestofpowercapacitors3. Masterthepowercabletest4. Mastertheinsulatortest5

29、 Mastercasingtest18(10+8)7GIS试验GIStest学习内容:Learningcontent:1 .GIS认知2 .GIS结构及参数1. GIScognition2. GISstructureandparameters具体要求:Specificrequirements:1 .掌握GIS断路器试验方法1. MasterthetestmethodofGIScircuitbreaker4(4+0)8掌握试验规程Mastertestprocedures学习内容:Learningcontent:1 .了解高压电气设备试验规程及设备选型2 .了解电气设备交接试验标准(国标5015

30、0)3 .了解电力设备预防性试验规程(行标596)4 .了解电力设备预防性试验规程(南网2011)1. Understandthehigh-voltageelectricalequipmenttestproceduresandequipmentselection2. Understandtheelectricalequipmenthandoverteststandard(nationalstandard50150)3. Understandthepreventivetestproceduresforelectricalequipment(standard596)4. Understandthe

31、preventivetestproceduresforpowerequipment(SouthChinaNetwork2011)具体要求:Specificrequirements:1 .能理解国标、行标、地标的作用与区别2 .根据标准写出测试方案和实施过程1. Canunderstandthefunctionanddifferenceofnationalstandard,linestandardandlandmark2. Writetestplanandimplementationprocessaccordingtostandards10(10+0)总课时96学时,理论48学时,实践48学时。

32、Thetotalclasshoursare96hours,thetheoryis50hours,andthepracticeis46hours.五、教材编写与选用建议TextbookcompiIationandseIectionadvice1.教材编写(1)应依据本课程标准编写教材,教材应充分体现本专业岗位能力需求和高职学生的特点和认知规律。(2)教材应将本专业职业活动分解成若干典型的工作项目。项目载体要取自现场实际案例,将理论知识与现场实践紧密结合。(3)教材应图文并茂,案例选取要具有典型性,同时兼顾趣味性,提高学生的学习兴趣。(4)教材内容应体现实用性、通用性、经典性,同时要将本专业的新技

33、术、新工艺、新材料等及时纳入教材,使教材更贴近本专业的发展与实际需要。(5)表达必须精炼、准确、科学。2.选用建议建议选用XX主编高电压设备测试,西南交通大学出版社,2014年。.1. Textbookcompilation(1) Textbooksshouldbewrittenaccordingtothestandardsofthiscourse,andthetextbooksshouldfullyreflecttheprofessionalneedsoftheprofessionandthecharacteristicsandcognitivelawsofstudentsinhigherv

34、ocationalcolleges.(2) Thetextbookshoulddecomposetheprofessionalactivitiesofthismajorintoseveraltypicalworkitems.Theprojectcarriershouldbetakenfromtheactualcaseonsite,andthetheoreticalknowledgeshouldbecloselycombinedwiththefieldpractice.(3) Thetextbooksshouldbewellillustrated,andthecaseselectionshoul

35、dbetypical,andatthesametimetakeintoaccountthefun,andincreasestudents*interestinlearning.(4) Thecontentofthetextbookshouldreflectthepracticality,versatilityandclassicness.Atthesametime,thenewtechnologies,newprocessesandnewmaterialsofthemajorshouldbeincludedinthetextbookintimetomakethetextbookcloserto

36、thedevelopmentandactualneedsofthemajor.(5) Theexpressionmustberefined,accurateandscientific.2. SelectionsuggestionsItisrecommendedtoselect“HighVoltageEquipmentTestneditedbyHeFawu,SouthwestJiaotongUniversityPress,2014.六、教学资源与其它V. TeachingResourcesandOthers序号No.教学资源类别Typesofteachingresources教学资料基本信息Ba

37、sicinformationofteachingmaterials1教学场所Teachingvenues1 .高电压测试实训室2 .高压设备拆装实训室3 .牵引变电所实训室4 .专业教室2教材、主要参考书Textbooksandmainreferencebooks教材:l,高电压设备测试(第二版),中国铁道出版社,2020年。2.xx,高压电气设备测试实训指导书,西南交通大学出版社,2018年。主要参考书l.xx,城市轨道交通电气设备测试(第二版),西南交通大学出版社,2022年。3相关网站Relatedwebsites高电压设备测试MOOC课程:XX高电压设备测试(双语)MOOC课程XX七、

38、教学方法与教学手段VI. SuggestionsonteachingmethodsItisrecommendedtocombinethefollowingteachingmethods.(一)教学重点(1) Teachingfocus1 .绝缘介质的绝缘性能与放电机理。2 .常用电气试验仪器的操作与使用。3 .绝缘预防性试验方法与原理。4 .电气设备特性试验方法与原理。5 .电气试验规程与安全。1. Insulationperformanceanddischargemechanismofinsulatingmedia.2. Theoperationanduseofcommonelectrica

39、ltestinstruments.3. Insulationpreventivetestmethodsandprinciples.4. Testmethodsandprinciplesofelectricalequipmentcharacteristics.5. Electricaltestregulationsandsafety.(二)教学难点(II) Difficultiesinteaching1 .绝缘介质的绝缘性能与放电机理。2 .电力变压器综合试验。3 .互感器的特性试验。4 .高压开关电器的特性试验。1. Insulationperformanceanddischargemecha

40、nismofinsulatingmedia.2. Comprehensivetestofpowertransformers.3. Transformercharacteristictest.4. Characteristictestofhigh-voltageswitchappliances.(三)教学方法与教学手段(III) Teachingmethods根据课程的教学重点与教学难点以及学生的学习特点,建议本课程采取以六步教学法为主体的“教学做一体化”教学,同时实施4节连排,周数连排的集中分段式教学组织。1 .资讯“教”以情境现场问题为例:(1)通过现场项目需求,向学生展示高压测试的实际运行

41、情境,引导学生感知真实的工作环境。(2)充分利用高压实训室等专业实训设施开展现场教学,将学生引入真实的工作情境中,进一步增强对高压试验的感性认识。2 .计戈U“学”辅以分组研讨:将学生分成若干个小组,以小组为单位开展学习讨论,共同完成相关的作业与项目,小组间相互评价,小组间开展辩论等。3 .决策以案例教学为项目导向:每个项目安排一个实际案例,引导学生学会运用知识分析具体的实际问题。在运用知识的过程中加深对有关概念的理解,熟悉分析问题的方法,提高综合分析能力与解决问题的能力。4 .实施“做”以现场实操为手段:(1)以高压实训室为场所,以学生为主体,现场动手开展真实任务的任务项目教学。(2)“做”

42、的项目要求与现场同步,按企业标准要求,让学生实现岗位性操作。(3)高压试验属于危险试验,安全风险大,学生“做”后,方理解安全作业的重要性。5 .检查检查学生实训项目方案及执行情况,采用学生自答互答,结合教师问答形式检查其教学效果。6 .评估采用项目抽签后,独立完成项目考核内容,以评估教学完成后的实际效果。Accordingtotheteachingfocusandteachingdifficultiesofthecourseandthelearningcharacteristicsofthestudents,itisrecommendedthatthecourseadoptthe11teach

43、ingtodointegration11teachingwiththesix-stepteachingmethodasthemainbody,andimplementacentralizedsegmented4-segmentrow-weekrowTeachingorganization.1. InformationTeaching1takesthesituationon-siteasanexample:(1)Throughtheneedsofon-siteprojects,toshowstudentstheactualoperatingsituationofhigh-pressuretest

44、ing,andguidestudentstoperceivetherealworkingenvironment.(2)Makefulluseofhigh-pressuretrainingroomsandotherprofessionaltrainingfacilitiestocarryouton-siteteaching,introducestudentsintorealworksituations,andfurtherenhancetheperceptualknowledgeofhigh-pressuretests.2. plan11Study11issupplementedbygroupd

45、iscussion:dividestudentsintoseveralgroups,conductstudyanddiscussioningroups,completerelatedhomeworkandprojects,evaluateeachotheramonggroups,anddebateamonggroups.3. decisionmakingCase-basedteachingisproject-oriented:eachprojectarrangesapracticalcasetoguidestudentstolearntoanalyzespecificpracticalprob

46、lemsusingknowledge.Intheprocessofapplyingknowledge,deepentheunderstandingofrelatedconcepts,familiarwiththemethodofproblemanalysis,andimprovethecomprehensiveanalysisabilityandproblemsolvingability.4. ImplementDone11takeson-sitepracticaloperationasameans:(1)Usinghigh-pressuretrainingroomsasthevenueand

47、studentsasthemainbody,hands-onon-the-spotteachingofrealtasks.(2)Doprojectrequirementsaresynchronizedwiththescene,andstudentsareallowedtoimplementpost-basedoperationsinaccordancewithcorporatestandardrequirements.(3)Thehigh-pressuretestisadangeroustest,andthesafetyriskislarge.Afterthestudentsdon,theyunderstandtheimportanceofsafework.5. anexaminationChecktheprogramandimplementationofthestudent,spracticaltrainingproject,usestudentself-answerandmutuala
