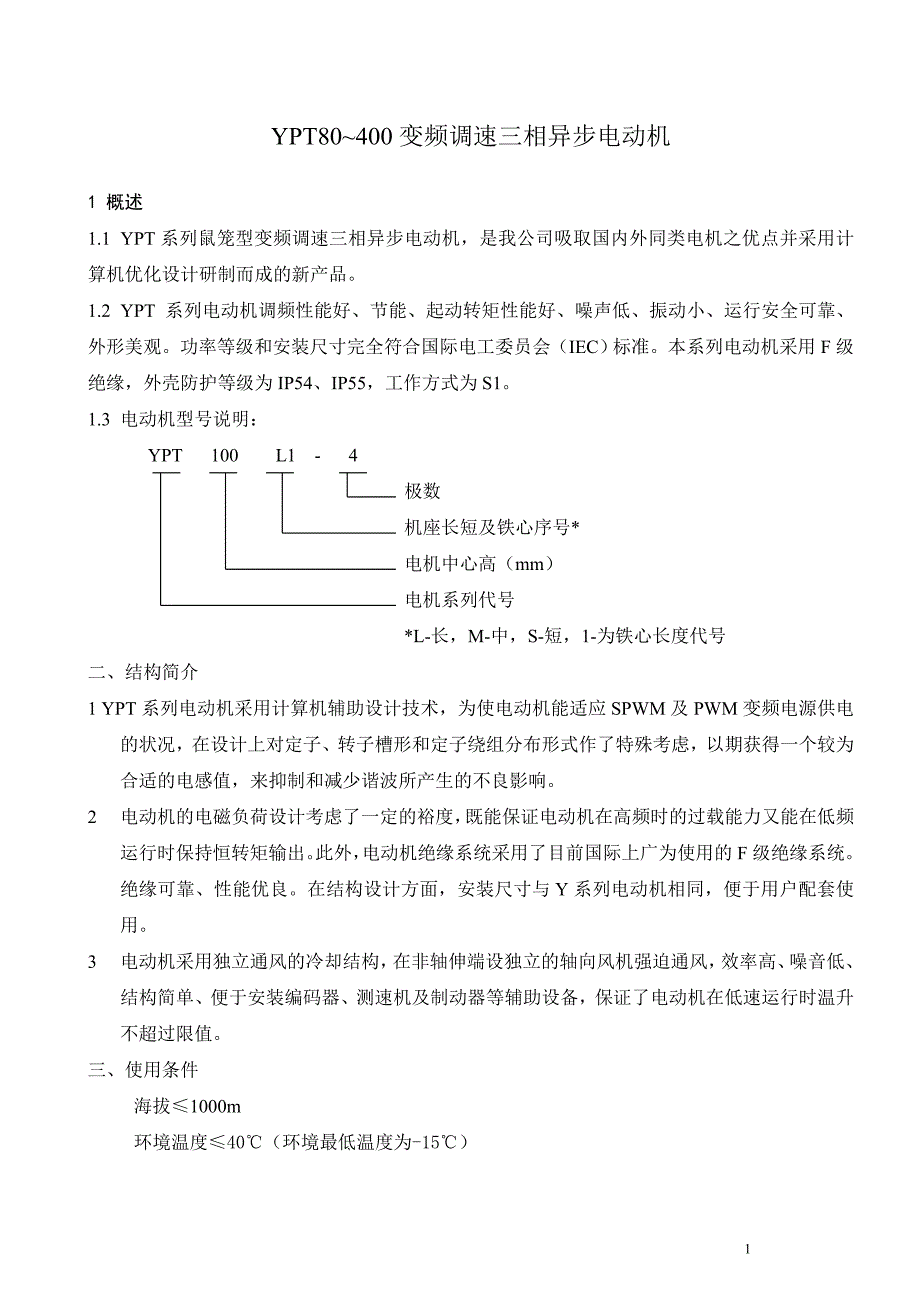

1、YPT80400变频调速三相异步电动机0EE.138.107佳木斯电机股份有限公司二00一年十月YPT80400变频调速三相异步电动机1 概述1.1 YPT系列鼠笼型变频调速三相异步电动机，是我公司吸取国内外同类电机之优点并采用计算机优化设计研制而成的新产品。1.2 YPT 系列电动机调频性能好、节能、起动转矩性能好、噪声低、振动小、运行安全可靠、外形美观。功率等级和安装尺寸完全符合国际电工委员会（IEC）标准。本系列电动机采用F级绝缘，外壳防护等级为IP54、IP55，工作方式为S1。1.3 电动机型号说明： YPT 100 L1 - 4极数机座长短及铁心序号*电机中心高（mm）电机系列代号

2、L-长，M-中，S-短，1-为铁心长度代号二、结构简介1 YPT系列电动机采用计算机辅助设计技术，为使电动机能适应SPWM及PWM变频电源供电的状况，在设计上对定子、转子槽形和定子绕组分布形式作了特殊考虑，以期获得一个较为合适的电感值，来抑制和减少谐波所产生的不良影响。2 电动机的电磁负荷设计考虑了一定的裕度，既能保证电动机在高频时的过载能力又能在低频运行时保持恒转矩输出。此外，电动机绝缘系统采用了目前国际上广为使用的F级绝缘系统。绝缘可靠、性能优良。在结构设计方面，安装尺寸与Y系列电动机相同，便于用户配套使用。3 电动机采用独立通风的冷却结构，在非轴伸端设独立的轴向风机强迫通风，效率高、噪

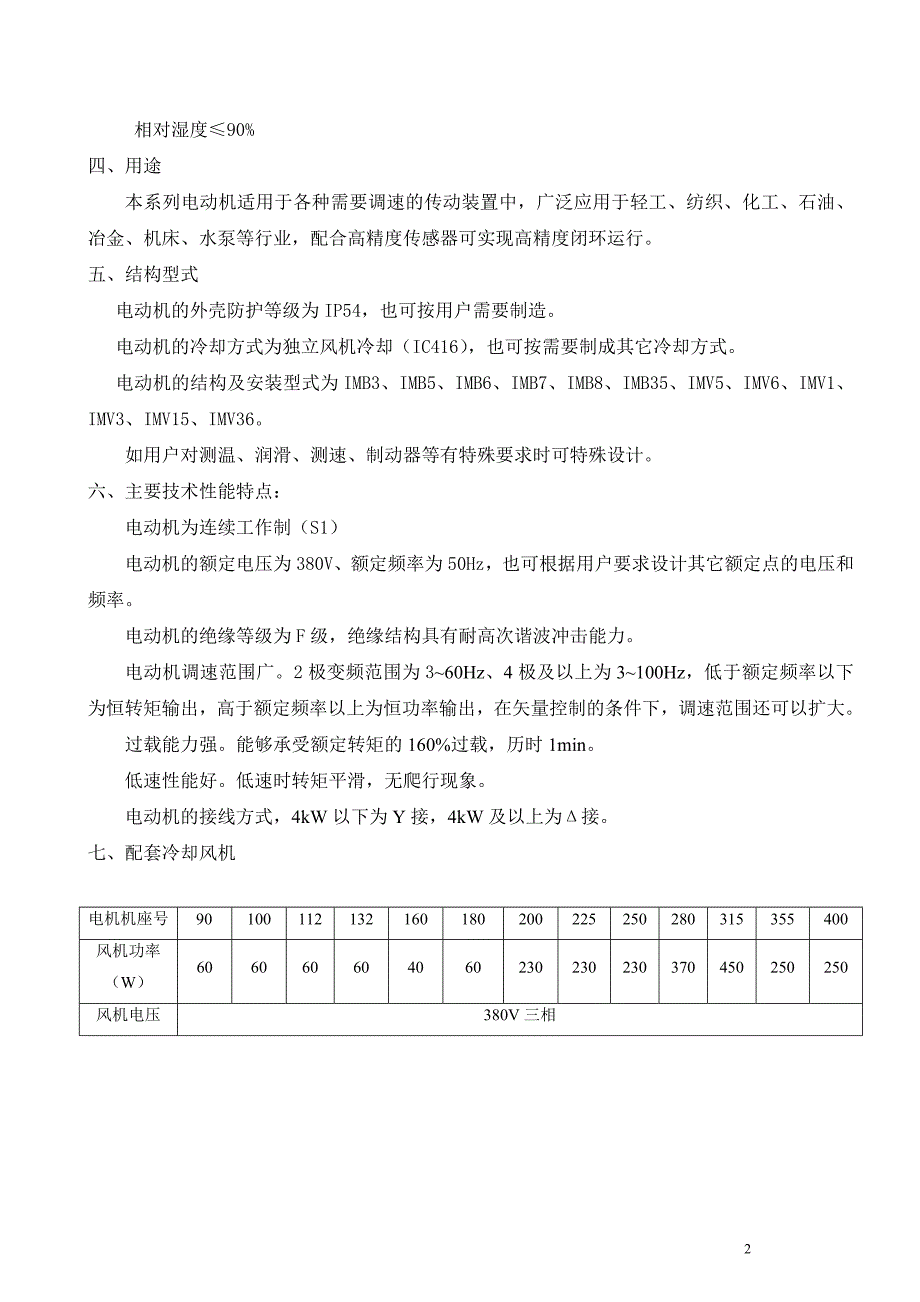

3、音低、结构简单、便于安装编码器、测速机及制动器等辅助设备，保证了电动机在低速运行时温升不超过限值。三、使用条件海拔1000m环境温度40（环境最低温度为-15）相对湿度90%四、用途本系列电动机适用于各种需要调速的传动装置中，广泛应用于轻工、纺织、化工、石油、冶金、机床、水泵等行业，配合高精度传感器可实现高精度闭环运行。五、结构型式 电动机的外壳防护等级为IP54，也可按用户需要制造。 电动机的冷却方式为独立风机冷却（IC416），也可按需要制成其它冷却方式。 电动机的结构及安装型式为IMB3、IMB5、IMB6、IMB7、IMB8、IMB35、IMV5、IMV6、IMV1、IMV3、IMV1

4、5、IMV36。如用户对测温、润滑、测速、制动器等有特殊要求时可特殊设计。六、主要技术性能特点：电动机为连续工作制（S1）电动机的额定电压为380V、额定频率为50Hz，也可根据用户要求设计其它额定点的电压和频率。电动机的绝缘等级为F级，绝缘结构具有耐高次谐波冲击能力。电动机调速范围广。2极变频范围为360Hz、4极及以上为3100Hz，低于额定频率以下为恒转矩输出，高于额定频率以上为恒功率输出，在矢量控制的条件下，调速范围还可以扩大。过载能力强。能够承受额定转矩的160%过载，历时1min。低速性能好。低速时转矩平滑，无爬行现象。电动机的接线方式，4kW以下为Y接，4kW及以上为接。七、配套

5、冷却风机电机机座号90100112132160180200225250280315355400风机功率（W）606060604060230230230370450250250风机电压380V三相11 八、技术数据Technical data型号额定功率（kW）额定转速（r/min）额定电流（A）额定效率（%）额定功率因数（cos）额定转矩最大转矩额定转矩重量同步转速3000r/min(2极) 50Hz801-20.7528301.9750.842.52.317802-21.128302.676.50.853.71890S-21.528403.4780.825.02290L-22.228404.

6、780.50.837.426100L-23.028706.4820.879.935112M-24.028908.285.50.8613.245132S1-25.5290011.185.50.8818.167132S2-27.5290015.086.20.8824.771160M1-211293021.887.20.8735.8118160M2-215293029.488.20.8848.9128160L-218.5293035.5890.8860.3150180M-222294042.2890.8871.5178200L1-230295056.9900.8897.1230200L2-23729

7、5069.890.50.88119.8250225M-245297083910.88144.7319250M-2552970102.791.50.88176.9403280S-2752970140.191.50.89241.2549280M-2902970167920.89289.4595315S-2110298020492.50.89352.5980315M-21322980245930.89423.01050315L1-2160298029593.50.89512.71100315L2-2200298036793.50.89640.91170355S1-2185298033094.50.9

8、0592.81420355S2-2200298035794.50.90640.91490355M1-22202980391950.90705.01550355M2-22502980444950.90801.21630355L1-22802980498950.90897.31775355L2-23152980560950.901009.41900400S-2355298062195.50.911137.62.02500400M-2400298070095.50.911281.92800同步转速1500 r/min(4极) 50Hz801-40.5513901.572.50.753.82.2178

9、02-20.7513902.074.50.755.11890S-41.114002.7780.787.52390L-41.514003.7790.8010.227100L1-42.214305.0810.8114.735100L2-43.014306.882.50.8120.038112M-44.014408.884.50.8126.549132S-45.5144011.685.50.8336.567132M-47.5144015.4870.8549.780型号额定功率（kW）额定转速（r/min）额定电流（A）额定效率（%）额定功率因数（cos）额定转矩最大转矩额定转矩重量同步转速1500

10、r/min(4极) 50Hz160M-411146022.6880.8471.92.2124160L-415146030.388.50.8698.1147180M-418.5147035.9910.87120.1173180L-422147042.591.50.87142.9197200L-430147056.892.20.87194.9255225S-437148069.891.80.87238.7305225M-445148084.292.30.88290.4333250M-4551480102.592.30.88354.9400280S-4751480139.792.70.88483.9

11、560280M-4901480164.393.50.89580.7660315S-4110148020193.50.89709.81000315M-41321490240940.89846.01100315L1-4160149028394.50.891025.51140315L-4200149036294.50.891281.8 1220355S1-4185148033894.50.881193.71695355S2-4200148036594.50.881290.51738355M1-4220148040095.00.881419.51820355M2-4250148045495.00.88

12、1613.11890355L1-4280148050195.50.891806.72095355L2-4315148056395.50.892032.02180400S-4355148565695.50.8622832.02650400M-4400148574095.50.8625722900400L-4450148583295.50.8628943050同步转速1000r/min(6极) 50Hz90S-60.759102.2572.50.707.92.12590L-61.19103.1572.50.7111.527100L-61.59403.9777.50.7315.2332112M-62

13、29405.6180.50.7222.345132S-63.09607.23830.7629.865132M1-64.09609.40840.7639.875132M2-65.596012.685.30.7854.784160M-67.597017.0860.7673.8121160L-61197024.6870.76108.3146180L-615970 31.489.50.78147.7186200L1-618.597037.789.80.83182.1235200L2-62297044.690.2 0.83216.6260225M-63098059.590.20.85292.23022

14、50M-6379807290.80.86360.5400型号额定功率（kW）额定转速（r/min）额定电流（A）额定效率（%）额定功率因数（cos）额定转矩最大转矩额定转矩重量同步转速1000r/min(6极) 50Hz280S-64598085.4920.86438.5533280M-655980104.9920.88536.02.1590315S-67599014192.80.87723.5990315M-69099016893.00.87868.21050315L1-611099020593.50.871061.11110315L2-613299024693.80.871273.3119

15、0355S-616098029794.00.871559.11690355M1-618598034394.00.871802.81740355M2-620098037094.50.871949.01820355L1-622098040694.50.872143.81910355L2-625098046294.50.872436.22120400S-628098553294.50.8527151.82800400M-631598559894.50.8530543000400L-635598567994.50.8534423200同步转速750 r/min(8极) 50Hz132S-82.2710

16、5.8800.7129.62.064132M-83.07107.7820.7240.375160M1-84.07209.9840.6953.1110160M2-85.572013.3850.7372.9121160L-87.572017.7860.7599.5147180L-81173025.1870.75143.9182200L-81573034.1880.76196.2290225S-818.573041.389.50.76242.0296225M-82273047.690.00.78283.9307250M-83074065.191.00.77387.1522280S-83774078.

17、291.00.77477.5522280M-84574065.191.70.78580.7578315S-85574011192.00.80709.7830315M-87574015092.50.81967.9930315L1-8 9074017993.00.821161.51030315L2-811074021993.30.821419.51200355S-813274026094.00.821703.51820355M-816074031594.00.822064.81900355L1-818574036394.50.822387.52100355L2-820074039294.50.82

18、2581.02180400S-8250740481940.8432261.82800400M-8280740539940.8436133000400L-8315740606940.8440653200型号额定功率（kW）额定转速（r/min）额定电流（A）额定效率（%）额定功率因数（cos）额定转矩最大转矩额定转矩重量同步转速600 r/min(10极) 50Hz315S-10455909991.50.74728.42.0900315M-105559012092.00.74890.21110315L2-107559016092.50.751213.91190355S-109059018793.

19、50.781456.71690355M1-1011059022993.50.781780.51820355M2-1013259027494.00.782136.61910355L1-1016059033294.00.782589.82120355L2-1018559038394.00.782994.42250400S-10185590378930.829941.62800400M-10200590408930.832373000九、外形安装尺寸 B3安装、机座带底脚端盖无凸缘机座号极数安装尺寸外形尺寸AA/2BCDEFGHKABACADBBHDL802、412562.5100501940615

20、5800-0.51016517515013017535090S2、4、6140701005624508209018019516019540090L125155430100L160801406328602410012205215180176245465112M1909514070112245240190180265490132S2、4、6、82161081408938801033132280275210200315525132M178238575160M25412721010842110123716015330335265270385645160L254314690180M279139.524

21、1121481442.5180355380285311430810180L279349850200L31815930513355164920019395420315365475890225S4、8356178286149601401853225435475345366530930225M23115511016493919404、6、8601401853970250M24062033491682502449051538544557510504、6、86558455280S2457228.53681902800-1.055058041052064011004、6、8752067.5280M2419

22、65185856011804、6、8752067.5315S25082544062166518583152863064557660086513004、6、8、108017022711330315M245765140185865013604、6、8、108017022711390315L250865140185871614504、6、8、108017022711480 B3安装、机座带底脚端盖无凸缘机座号极数安装尺寸外形尺寸AA/2BCDEFGHKABACADBBHDL355S2610305500254751402067.53550-1.028740750600710110016004、6、8、

23、10951702586355M2560751402067.584017504、6、8、10951702586355L2630751402067.584018004、6、8、10951702586400S2686343560280751402067.540035800792650730115016504、6、8、101002102890400M2630751402067.580017704、6、8、101002102890400L4、6、8751402067.51002102890B35安装、机座带底脚、端盖有凸缘机座号凸缘号极数安装尺寸外形尺寸AA/2BCDEFGHKMNPRST凸缘孔数ABA

24、CADBBHDL80FF1652、412562.5100501940615.580101651302000123.5416517515013017535090S2、4、6140701005624508209018019516019540090L125155430100LFF215160801406328602410012215180250154205215180176245465112M1909514070112245240190180265490132SFF2652、4、6、82161081408938801033132265230300280275210200315525132M17823

25、8575160MFF30025412721010842110123716015300250350195330335265270385645160L254314690180M279139.5241121481442.5180355380285311430810180L279349850200LFF35031815930513355164920019350300400395420315365475890225SFF4004、83561782861496014018532254003504508435475345366530930225M23115511016493919404、6、86014018

26、53970250MFF50024062033491682502450045055049051538544557510504、6、86558455280S2457228.536819028055058041052064011004、6、8752067.5280M241965185856011804、6、8752067.5315SFF600250825440621665185831528600550660246.063064557660086513004、6、8、108017022711330315M245765140185865013604、6、8、108017022711390315L2508

27、65140185871014504、6、8、108017022711480355SFF7402610305500254751402067.535528740680800740750600710110016004、6、8、10951702586355M2560751402067.584017504、6、8、10951702586355L2630751402067.584018004、6、8、10951702586注：355机座电机接线盒在顶部，其余在右侧。 B5、V1安装机座无底脚端盖有凸缘机座号凸缘号极数安装尺寸外形尺寸DEFGMNPRST凸缘孔数ACADHFL80FF1652、4194061

28、5.51651302000123.5417515018539090S2、4、6245082019516019542090L455100LFF215286024215180250154215180245475112M240190265490132SFF2652、4、6、838801033265230300275210315550132M590160MFF300421101237300250350195335265385680160L725180M481442.5380285430810180L850200LFF350551649350300400420315480890225SFF4004、86

29、014018534003504508475345535930225M25511016499404、6、8601401853970250MFF50026050050060010504、6、86558500450550280S26556055066011004、6、8752067.5280M265185811804、6、8752067.5十、安装型式基本安装型式IMB3IMB5IMB35安装结构型式IMB3IMB6IMB7IMB8IMV5IMV6IMB5IMV1IMV3IMB35IMV15IMV36示意图适用范围803558016080280801608035580160十一、接线盒从轴伸端视之，80315电机接线盒位于机座右侧，355400接线盒位于机座顶部，用户如有特殊要求请在定货时说明。十二、定货须知 本样本仅供用户选型用，具体数据容有变动。定货时请注明电动机型号、额定功率、额定电压、额定频率、调频范围、安装型式及安装尺寸。若对电动机极数、电压等级、调速特性、绝缘等级、防护等级、安装尺寸等有特殊要求，请在定货时说明。
