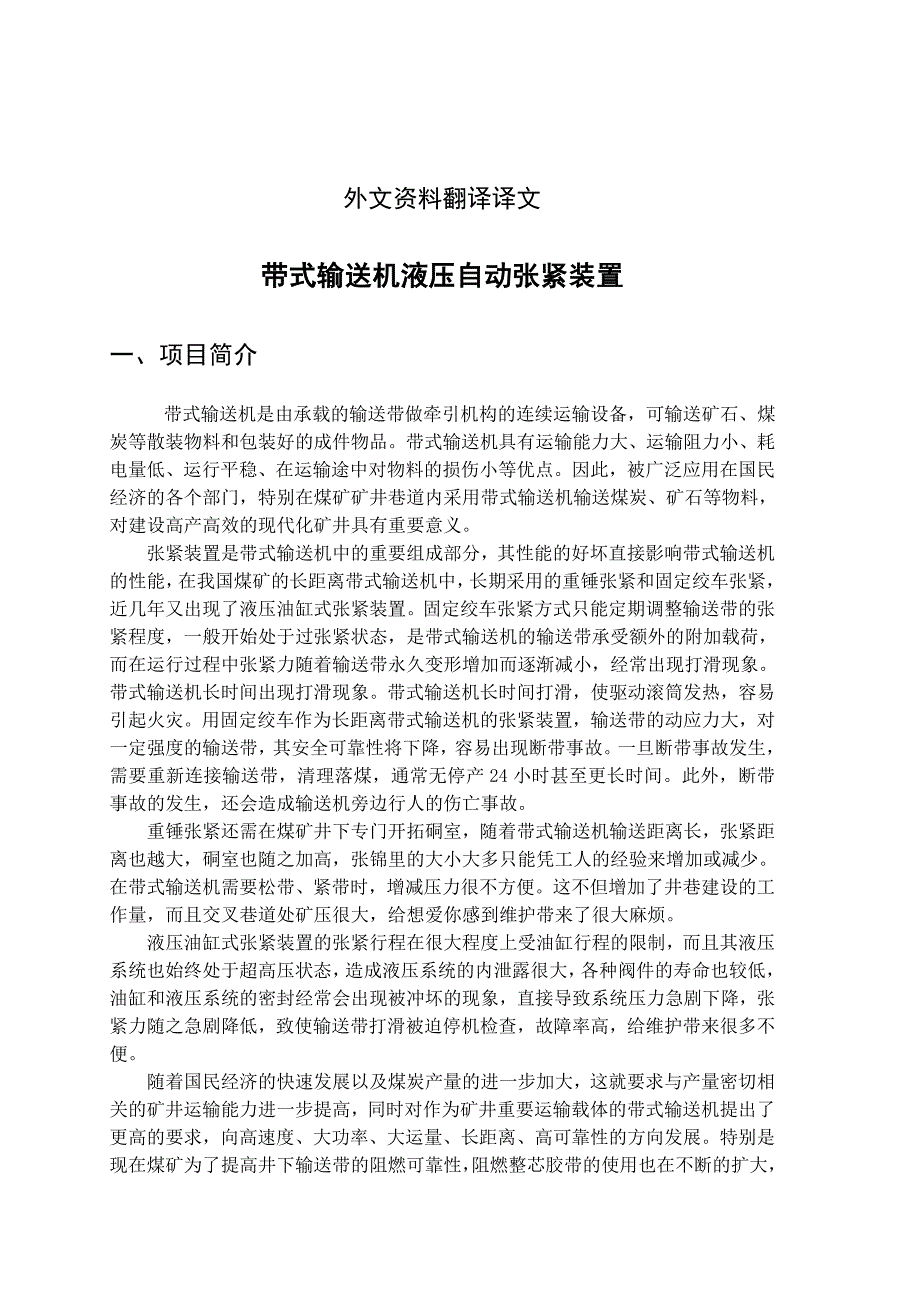

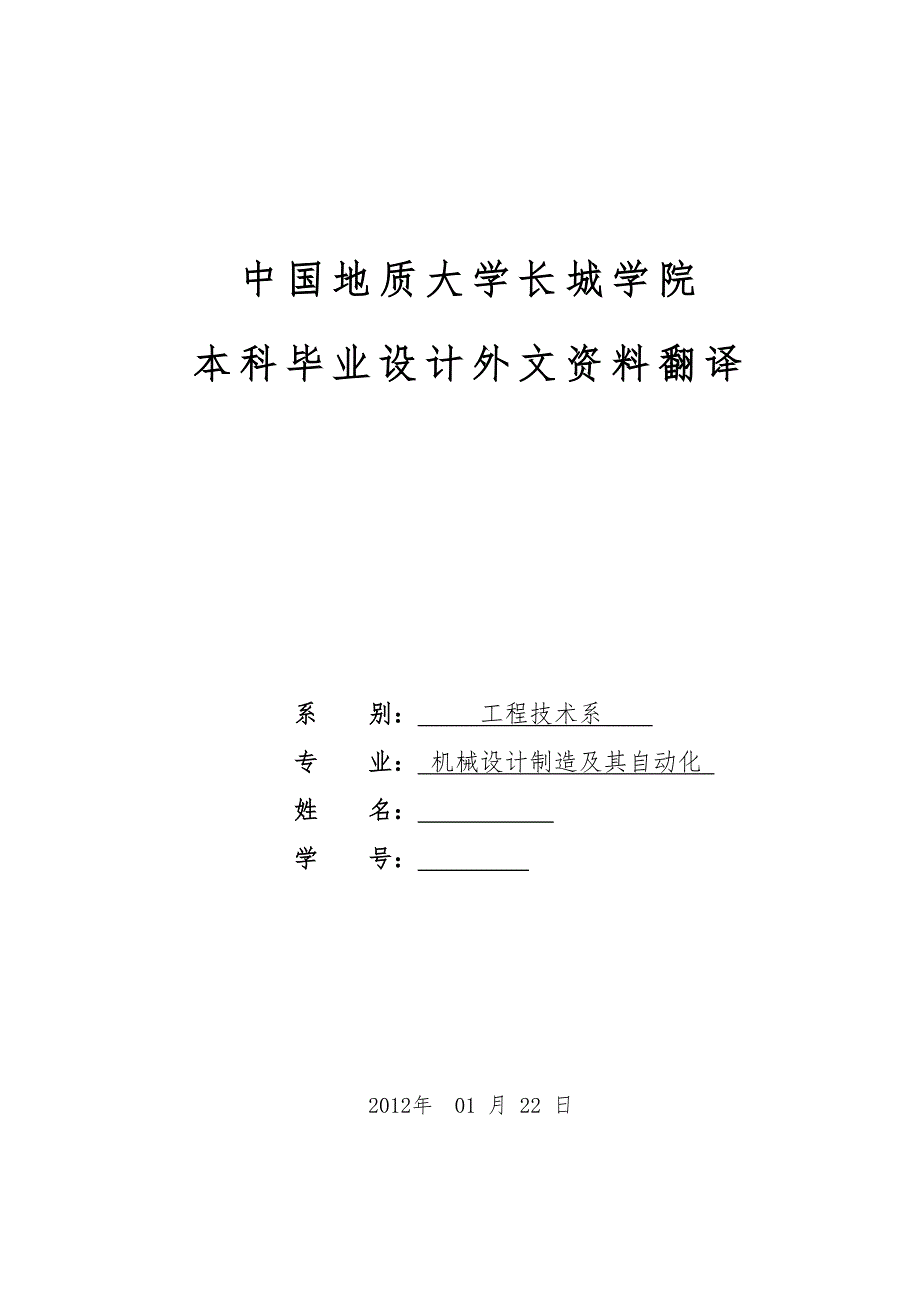

1、中国地质大学长城学院本科毕业设计外文资料翻译系 别： 工程技术系 专 业： 机械设计制造及其自动化 姓 名： 学 号： 2012年 01 月 22 日外文资料翻译译文带式输送机液压自动张紧装置一、 项目简介 带式输送机是由承载的输送带做牵引机构的连续运输设备，可输送矿石、煤炭等散装物料和包装好的成件物品。带式输送机具有运输能力大、运输阻力小、耗电量低、运行平稳、在运输途中对物料的损伤小等优点。因此，被广泛应用在国民经济的各个部门，特别在煤矿矿井巷道内采用带式输送机输送煤炭、矿石等物料，对建设高产高效的现代化矿井具有重要意义。张紧装置是带式输送机中的重要组成部分，其性能的好坏直接影响带式输送机的
2、性能，在我国煤矿的长距离带式输送机中，长期采用的重锤张紧和固定绞车张紧，近几年又出现了液压油缸式张紧装置。固定绞车张紧方式只能定期调整输送带的张紧程度，一般开始处于过张紧状态，是带式输送机的输送带承受额外的附加载荷，而在运行过程中张紧力随着输送带永久变形增加而逐渐减小，经常出现打滑现象。带式输送机长时间出现打滑现象。带式输送机长时间打滑，使驱动滚筒发热，容易引起火灾。用固定绞车作为长距离带式输送机的张紧装置，输送带的动应力大，对一定强度的输送带，其安全可靠性将下降，容易出现断带事故。一旦断带事故发生，需要重新连接输送带，清理落煤，通常无停产24小时甚至更长时间。此外，断带事故的发生，还会造成输
3、送机旁边行人的伤亡事故。重锤张紧还需在煤矿井下专门开拓硐室，随着带式输送机输送距离长，张紧距离也越大，硐室也随之加高，张锦里的大小大多只能凭工人的经验来增加或减少。在带式输送机需要松带、紧带时，增减压力很不方便。这不但增加了井巷建设的工作量，而且交叉巷道处矿压很大，给想爱你感到维护带来了很大麻烦。液压油缸式张紧装置的张紧行程在很大程度上受油缸行程的限制，而且其液压系统也始终处于超高压状态，造成液压系统的内泄露很大，各种阀件的寿命也较低，油缸和液压系统的密封经常会出现被冲坏的现象，直接导致系统压力急剧下降，张紧力随之急剧降低，致使输送带打滑被迫停机检查，故障率高，给维护带来很多不便。随着国民经济

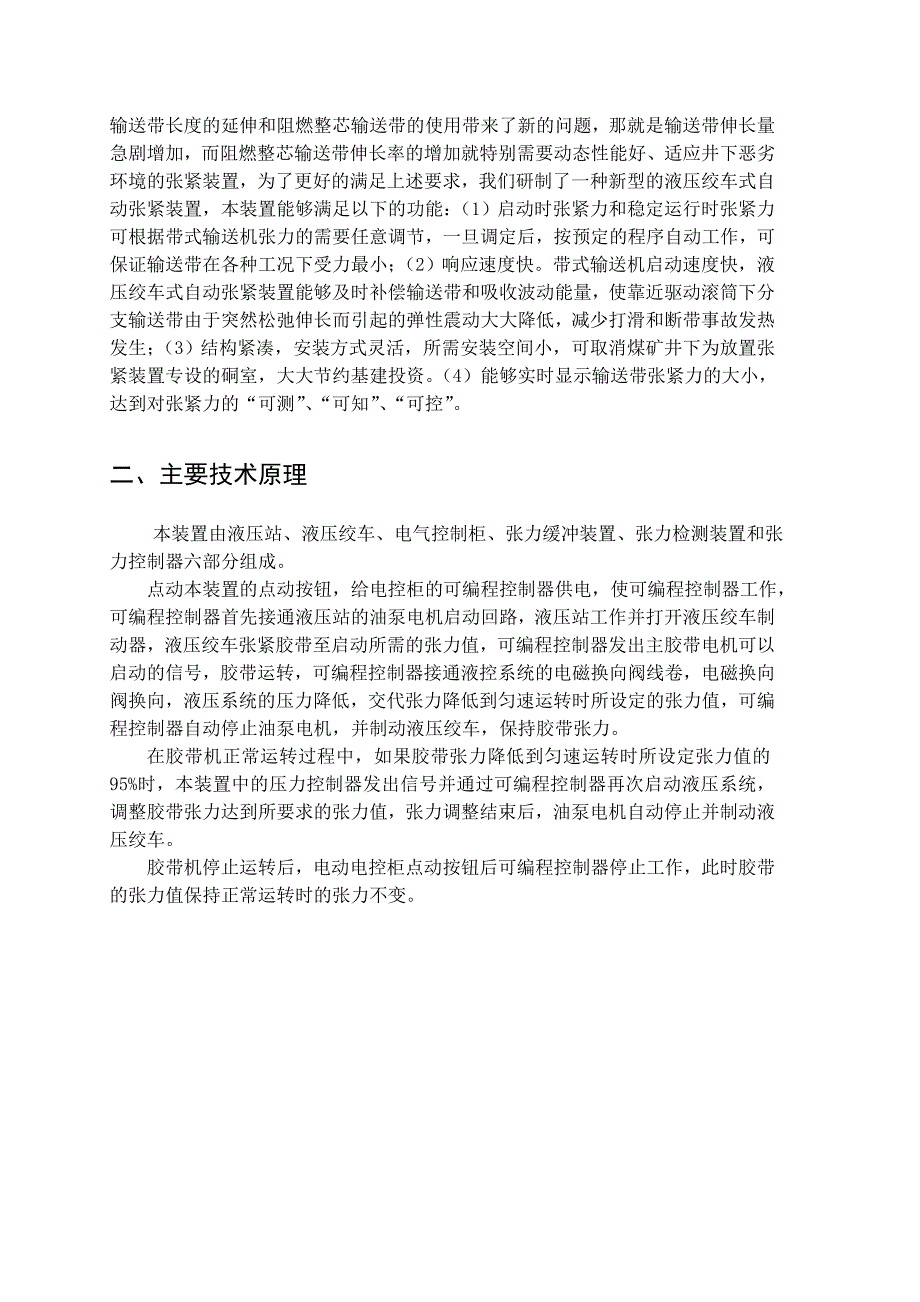

4、的快速发展以及煤炭产量的进一步加大，这就要求与产量密切相关的矿井运输能力进一步提高，同时对作为矿井重要运输载体的带式输送机提出了更高的要求，向高速度、大功率、大运量、长距离、高可靠性的方向发展。特别是现在煤矿为了提高井下输送带的阻燃可靠性，阻燃整芯胶带的使用也在不断的扩大，输送带长度的延伸和阻燃整芯输送带的使用带来了新的问题，那就是输送带伸长量急剧增加，而阻燃整芯输送带伸长率的增加就特别需要动态性能好、适应井下恶劣环境的张紧装置，为了更好的满足上述要求，我们研制了一种新型的液压绞车式自动张紧装置，本装置能够满足以下的功能：（1）启动时张紧力和稳定运行时张紧力可根据带式输送机张力的需要任意调节，
5、一旦调定后，按预定的程序自动工作，可保证输送带在各种工况下受力最小；（2）响应速度快。带式输送机启动速度快，液压绞车式自动张紧装置能够及时补偿输送带和吸收波动能量，使靠近驱动滚筒下分支输送带由于突然松弛伸长而引起的弹性震动大大降低，减少打滑和断带事故发热发生；（3）结构紧凑，安装方式灵活，所需安装空间小，可取消煤矿井下为放置张紧装置专设的硐室，大大节约基建投资。（4）能够实时显示输送带张紧力的大小，达到对张紧力的“可测”、“可知”、“可控”。二、 主要技术原理 本装置由液压站、液压绞车、电气控制柜、张力缓冲装置、张力检测装置和张力控制器六部分组成。 点动本装置的点动按钮，给电控柜的可编程控制器
6、供电，使可编程控制器工作，可编程控制器首先接通液压站的油泵电机启动回路，液压站工作并打开液压绞车制动器，液压绞车张紧胶带至启动所需的张力值，可编程控制器发出主胶带电机可以启动的信号，胶带运转，可编程控制器接通液控系统的电磁换向阀线卷，电磁换向阀换向，液压系统的压力降低，交代张力降低到匀速运转时所设定的张力值，可编程控制器自动停止油泵电机，并制动液压绞车，保持胶带张力。在胶带机正常运转过程中，如果胶带张力降低到匀速运转时所设定张力值的95%时，本装置中的压力控制器发出信号并通过可编程控制器再次启动液压系统，调整胶带张力达到所要求的张力值，张力调整结束后，油泵电机自动停止并制动液压绞车。胶带机停止
7、运转后，电动电控柜点动按钮后可编程控制器停止工作，此时胶带的张力值保持正常运转时的张力不变。外文原文Belt conveyor hydraulic automatic tensioner devic1、 Project profile Belt conveyor by carrying the belt is pulling for transport equipment, the organization can transport ore, coal and other bulk material and packaged into items. With transportation c
8、apacity of belt conveyor, small resistance, low power consumption transport, smooth operation, in transit to material damage small, etc. Therefore, it is widely used in various departments of national economy, especially in coal mine mine laneway by belt conveyor in conveying materials, such as coal
9、 ore, high production and efficiency of the modernization construction of mine to have the important meaning. Tensioner device is belt conveyor, the important component of a direct impact on the performance of the performance of the belt conveyor in China, the coal mine in long belt conveyor by hea
10、vy hammer, long-term tensioner and fixed drawwork tensioner, in recent years again appeared hydraulic oil cylinder type tensioner device. Fixed drawwork tensioner means can be regular adjustment of the conveyor belt, the general tensioner degree have been in the states, tensioner belt conveyor belt
11、bear the extra additional load, and in operation process of the tensioner force as conveyor belt is gradually increased permanent deformation reduced, often appear skid phenomenon. Belt conveyers captain time appear skid phenomenon. Belt conveyer, the captain time skid driving drum fever, easy to ca
12、use a fire. As with fixed winch of long belt conveyor tensioning devise the dynamic stress, conveyor belt is big, to a certain intensity of conveyor belt, its safety reliability will decline, prone to break with accidents. Once the fault belt accidents, and need to reconnect the conveyor belt, clean
13、 coal, usually without falling shut-down 24 hours or longer. In addition, broken belt accident, it will cause the pedestrians casualty beside conveyer. Heavy hammer tensioner still need in underground mines, with special pioneering cavern long distance transmission belt conveyor, tensioner distance
14、is bigger also, cavern, with the size of the ZhangJinLi heightening the experience of most only in workers to increase or decrease. In a belt conveyor belt, tight with need pine, increase or decrease the pressure is not easy. This not only increased workload, and the construction of linxin roadway p
15、lace mine pressure big cross, to want to love you feel maintenance brought great trouble. The hydraulic oil cylinder type tensioning devise trip the tensioner are largely oil cylinder travel restrictions, and its hydraulic system also always in ultrahigh pressure condition, cause hydraulic system, v
16、arious valves within large leak pieces of the low life expectancy, cylinder and hydraulic system seal often appear be blunt bad phenomenon, led directly to the system pressure drop dramatically and tensioner force, which caused the conveyor belt sharply lower then forced outage check, failure rate s
17、kidding high, give a maintenance bring a lot of inconvenience. With the rapid development of national economy and coal output to increase, which requires the mine is closely related with production, and further improve the transportation capacity of mine important carriers as the belt conveyor, puts
18、 forward a higher request to the high speed, high power, large-capacity, long distance, high reliability direction. Especially now coal mine in order to improve the reliability of flame retardant underground conveyor belt, flame retardant whole core tape usage is also in the unceasing expansion, con
19、veyer belt length outspread and the use of flame retardant whole core conveyer belt brings new problems, that is conveyor belt stretching quantity increased dramatically, and flame retardant whole core belt is especially need the increase of good dynamic performance, adapt to the underground severe
20、conditions tensioner device, in order to better satisfy the above-mentioned requirements, we developed a new kind of hydraulic drawworks type automatic tensioner device, this device could satisfy the following functions: (1) start-up tensioner force and stable runtime tensioner force according to th
21、e need of belt conveyor tension arbitrarily regulate, and once after adjustment for the program as scheduled work automatically and can ensure the conveyor belt under various working conditions; the smallest stress (2) response speed. Starting of belt conveyor speed, hydraulic drawworks type automat
22、ic tensioner device can prompt compensation conveyor belt and absorption wave energy, which is close to drive roller next branch conveyor belt because suddenly relaxation of elastic vibration caused by elongation is greatly reduced and reduced skid and broken belt accident happened; fever (3) compac
23、t structure, flexible installation, the space is little, can cancel installation of underground coal mine for placing tensioning devise 4-storey cavern, greatly saves the initial investment. (4) can real-time display conveyer belt tensioner force size, achieve the for tensioner force measurable, kno
24、wn, controlled.2.Main technical principles This device by hydraulic pressure station, hydraulic drawworks, electrical control cabinet, tension buffer device, tension detection device and tension controller six parts. The point start this devices point start button, give electric control cabinet prog
25、rammable controller power supply, make the programmable controller work, programmable controller first through the hydraulic station oil pump motor startup circuit, hydraulic station and open hydraulic drawworks brakes, hydraulic drawworks tensioner tape to start the tension value needed, PLC issued
26、 a Lord of the signal can be activated tape motor running, tape, programmable controller connect liquid control system of the electromagnetic reversing valves XianJuan, electromagnetic reversing valves reversing, hydraulic system pressure drops, metasomatism tension when reduced to uniform operation
27、 set of tension value, programmable controller automatically stops the oil pump motor, and brake hydraulic drawworks, maintain tape tension. The normal operation in tape machine processing, if the tape tension when reduced to uniform operation set by tension value, the 95% of the signal of pressure
28、controller device by programmable controller and restart hydraulic system, adjust the tape to the required tension tension after adjustment, tension value, the oil pump motor automatically stop and brake hydraulic drawworks. Tape machine stop working, electric control cabinet point start button programmable controller to stop working, the tension at tape the normal operation of value when keeping tension constant.
