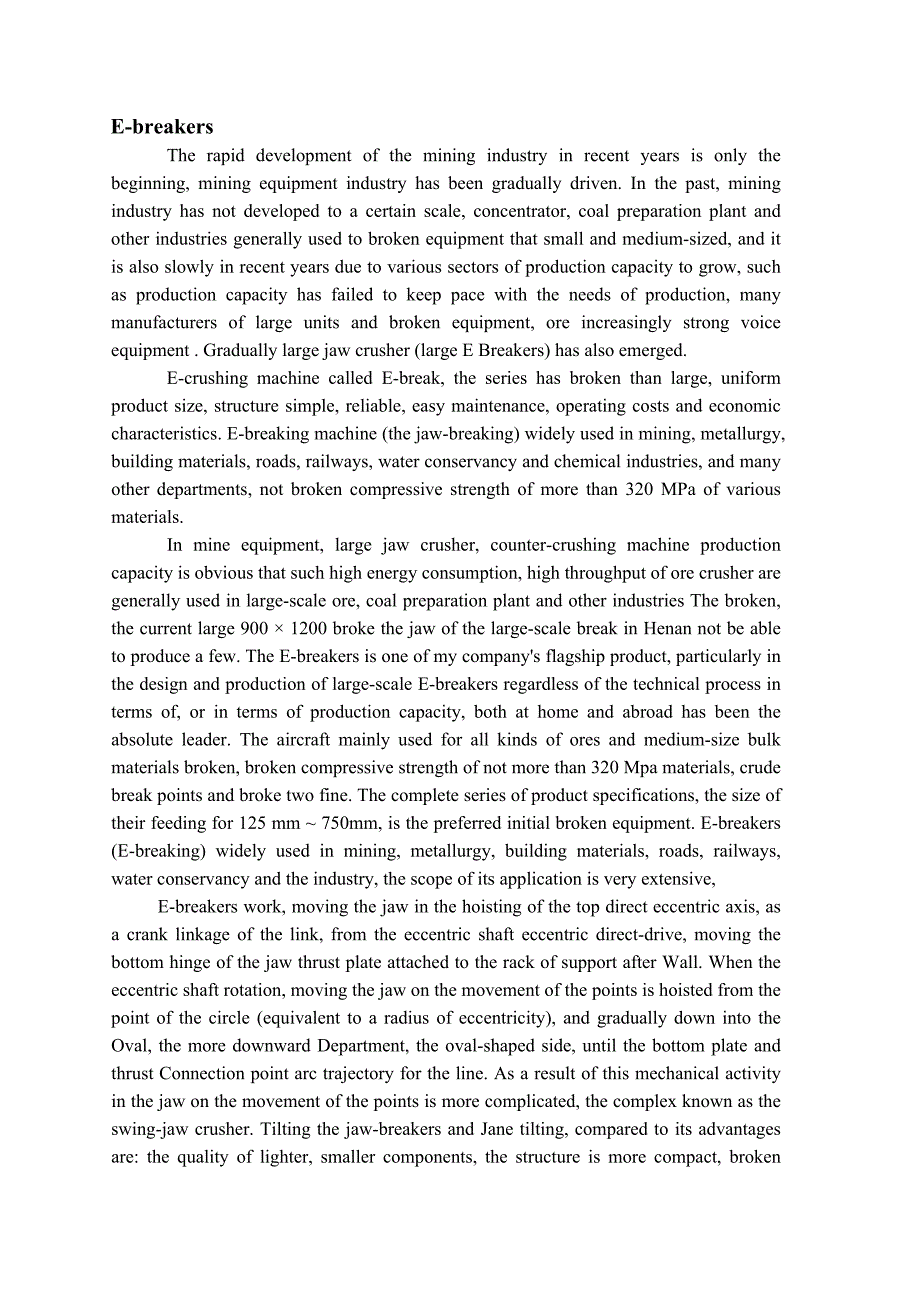

1、E-breakers The rapid development of the mining industry in recent years is only the beginning, mining equipment industry has been gradually driven. In the past, mining industry has not developed to a certain scale, concentrator, coal preparation plant and other industries generally used to broken eq
2、uipment that small and medium-sized, and it is also slowly in recent years due to various sectors of production capacity to grow, such as production capacity has failed to keep pace with the needs of production, many manufacturers of large units and broken equipment, ore increasingly strong voice eq
3、uipment . Gradually large jaw crusher (large E Breakers) has also emerged. E-crushing machine called E-break, the series has broken than large, uniform product size, structure simple, reliable, easy maintenance, operating costs and economic characteristics. E-breaking machine (the jaw-breaking) wide
4、ly used in mining, metallurgy, building materials, roads, railways, water conservancy and chemical industries, and many other departments, not broken compressive strength of more than 320 MPa of various materials. In mine equipment, large jaw crusher, counter-crushing machine production capacity is
5、obvious that such high energy consumption, high throughput of ore crusher are generally used in large-scale ore, coal preparation plant and other industries The broken, the current large 900 1200 broke the jaw of the large-scale break in Henan not be able to produce a few. The E-breakers is one of m
6、y companys flagship product, particularly in the design and production of large-scale E-breakers regardless of the technical process in terms of, or in terms of production capacity, both at home and abroad has been the absolute leader. The aircraft mainly used for all kinds of ores and medium-size b
7、ulk materials broken, broken compressive strength of not more than 320 Mpa materials, crude break points and broke two fine. The complete series of product specifications, the size of their feeding for 125 mm 750mm, is the preferred initial broken equipment. E-breakers (E-breaking) widely used in mi
8、ning, metallurgy, building materials, roads, railways, water conservancy and the industry, the scope of its application is very extensive, E-breakers work, moving the jaw in the hoisting of the top direct eccentric axis, as a crank linkage of the link, from the eccentric shaft eccentric direct-drive
9、 moving the bottom hinge of the jaw thrust plate attached to the rack of support after Wall. When the eccentric shaft rotation, moving the jaw on the movement of the points is hoisted from the point of the circle (equivalent to a radius of eccentricity), and gradually down into the Oval, the more d
10、ownward Department, the oval-shaped side, until the bottom plate and thrust Connection point arc trajectory for the line. As a result of this mechanical activity in the jaw on the movement of the points is more complicated, the complex known as the swing-jaw crusher. Tilting the jaw-breakers and Jan

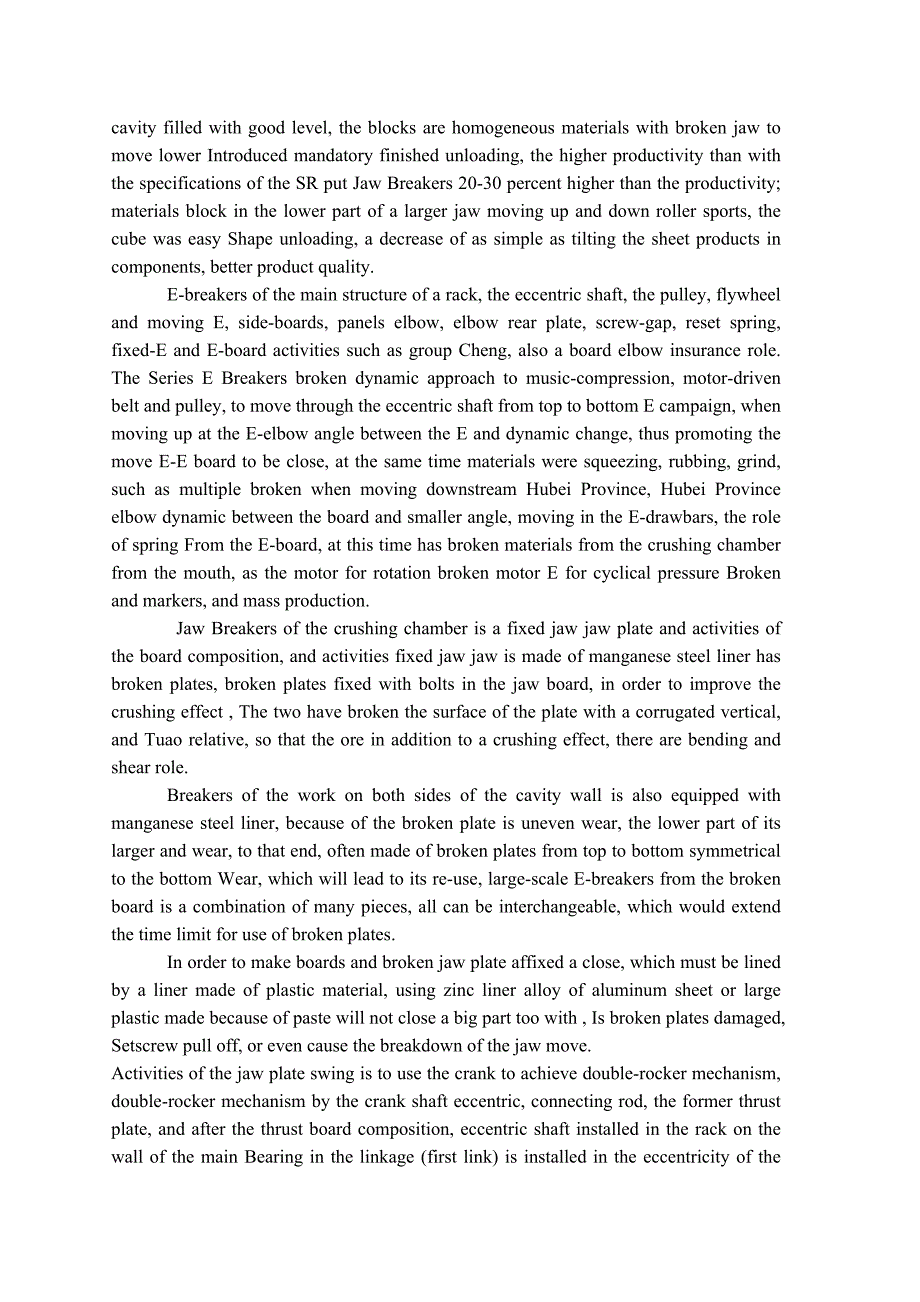

11、e tilting, compared to its advantages are: the quality of lighter, smaller components, the structure is more compact, broken cavity filled with good level, the blocks are homogeneous materials with broken jaw to move lower Introduced mandatory finished unloading, the higher productivity than with th
12、e specifications of the SR put Jaw Breakers 20-30 percent higher than the productivity; materials block in the lower part of a larger jaw moving up and down roller sports, the cube was easy Shape unloading, a decrease of as simple as tilting the sheet products in components, better product quality.
13、E-breakers of the main structure of a rack, the eccentric shaft, the pulley, flywheel and moving E, side-boards, panels elbow, elbow rear plate, screw-gap, reset spring, fixed-E and E-board activities such as group Cheng, also a board elbow insurance role. The Series E Breakers broken dynamic approa
14、ch to music-compression, motor-driven belt and pulley, to move through the eccentric shaft from top to bottom E campaign, when moving up at the E-elbow angle between the E and dynamic change, thus promoting the move E-E board to be close, at the same time materials were squeezing, rubbing, grind, su
15、ch as multiple broken when moving downstream Hubei Province, Hubei Province elbow dynamic between the board and smaller angle, moving in the E-drawbars, the role of spring From the E-board, at this time has broken materials from the crushing chamber from the mouth, as the motor for rotation broken m
16、otor E for cyclical pressure Broken and markers, and mass production. Jaw Breakers of the crushing chamber is a fixed jaw jaw plate and activities of the board composition, and activities fixed jaw jaw is made of manganese steel liner has broken plates, broken plates fixed with bolts in the jaw boar
17、d, in order to improve the crushing effect , The two have broken the surface of the plate with a corrugated vertical, and Tuao relative, so that the ore in addition to a crushing effect, there are bending and shear role. Breakers of the work on both sides of the cavity wall is also equipped with man
18、ganese steel liner, because of the broken plate is uneven wear, the lower part of its larger and wear, to that end, often made of broken plates from top to bottom symmetrical to the bottom Wear, which will lead to its re-use, large-scale E-breakers from the broken board is a combination of many piec
19、es, all can be interchangeable, which would extend the time limit for use of broken plates. In order to make boards and broken jaw plate affixed a close, which must be lined by a liner made of plastic material, using zinc liner alloy of aluminum sheet or large plastic made because of paste will not
20、close a big part too with , Is broken plates damaged, Setscrew pull off, or even cause the breakdown of the jaw move. Activities of the jaw plate swing is to use the crank to achieve double-rocker mechanism, double-rocker mechanism by the crank shaft eccentric, connecting rod, the former thrust plat
21、e, and after the thrust board composition, eccentric shaft installed in the rack on the wall of the main Bearing in the linkage (first link) is installed in the eccentricity of the eccentric shaft, the thrust plate before and after the end of the next support on both sides of the first link in the g
22、roove of the elbow-seat, thrust before the board in support of the other side Lower jaw moving back wall of the elbow board seat, then thrust plate while the other end of the posterior support of the rack elbow board, when the eccentric shaft from the motor pulley through triangular access to power
23、after the rotation, from top to bottom to make a link campaign, Linkage also led the movement from top to bottom thrust plate movement, the thrust plate to the changing angle, thereby moving the jaw swinging around the mandrel, the connecting rod upward movement when broken ore, when the link in the

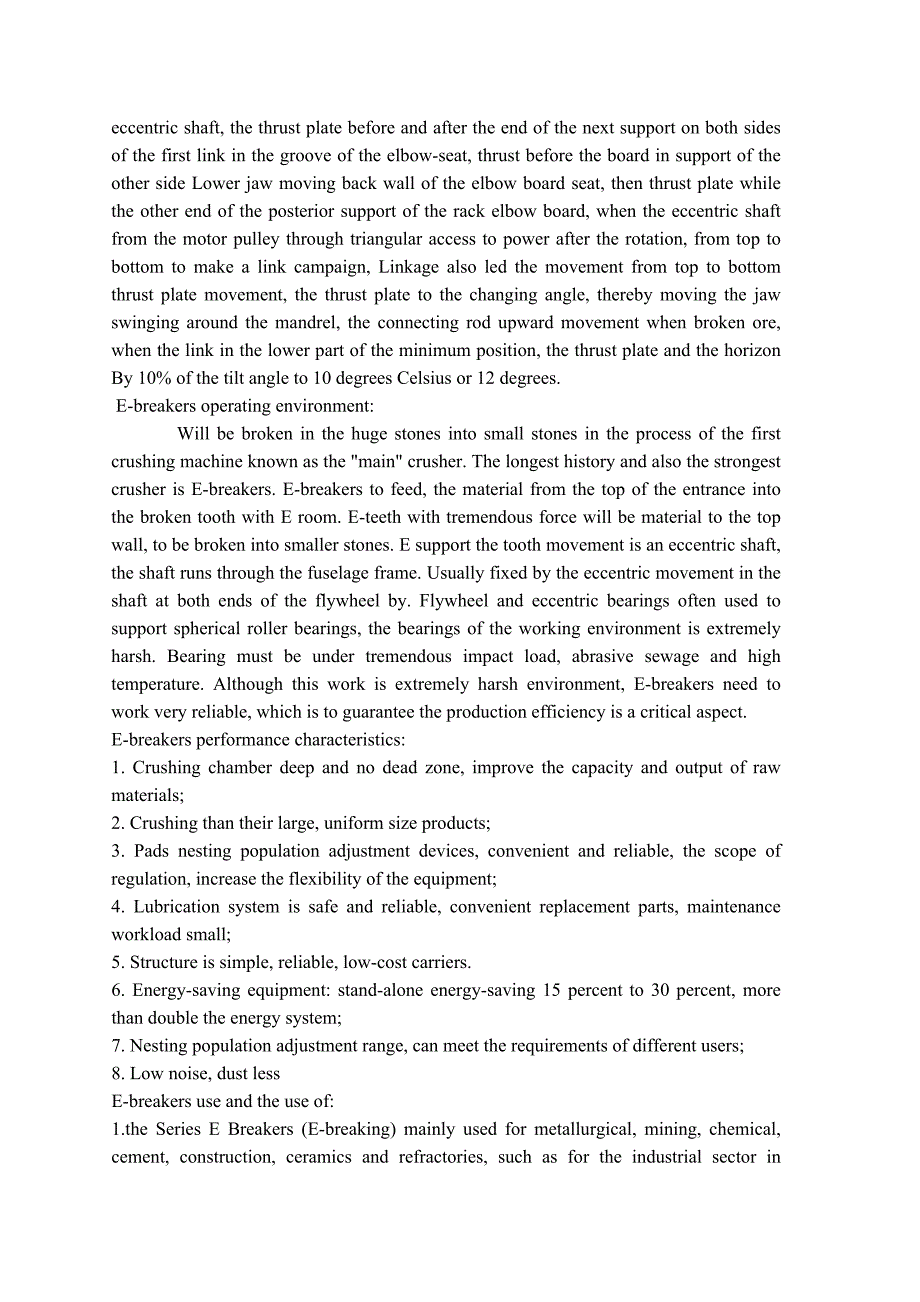

24、 lower part of the minimum position, the thrust plate and the horizon By 10% of the tilt angle to 10 degrees Celsius or 12 degrees. E-breakers operating environment: Will be broken in the huge stones into small stones in the process of the first crushing machine known as the main crusher. The longes
25、t history and also the strongest crusher is E-breakers. E-breakers to feed, the material from the top of the entrance into the broken tooth with E room. E-teeth with tremendous force will be material to the top wall, to be broken into smaller stones. E support the tooth movement is an eccentric shaf
26、t, the shaft runs through the fuselage frame. Usually fixed by the eccentric movement in the shaft at both ends of the flywheel by. Flywheel and eccentric bearings often used to support spherical roller bearings, the bearings of the working environment is extremely harsh. Bearing must be under treme
27、ndous impact load, abrasive sewage and high temperature. Although this work is extremely harsh environment, E-breakers need to work very reliable, which is to guarantee the production efficiency is a critical aspect. E-breakers performance characteristics: 1. Crushing chamber deep and no dead zone,
28、improve the capacity and output of raw materials; 2. Crushing than their large, uniform size products; 3. Pads nesting population adjustment devices, convenient and reliable, the scope of regulation, increase the flexibility of the equipment; 4. Lubrication system is safe and reliable, convenient re
29、placement parts, maintenance workload small;5. Structure is simple, reliable, low-cost carriers. 6. Energy-saving equipment: stand-alone energy-saving 15 percent to 30 percent, more than double the energy system; 7. Nesting population adjustment range, can meet the requirements of different users; 8
30、 Low noise, dust less E-breakers use and the use of: 1.the Series E Breakers (E-breaking) mainly used for metallurgical, mining, chemical, cement, construction, ceramics and refractories, such as for the industrial sector in Grinding and broken all kinds of minerals in hard rock and use. 2. the ser
31、ies of jaw breakers (broken jaw) the most appropriate broken compressive strength of not more than 300 MPa (MPa) of hard and soft ore, was broken material may not be larger than the largest block of technical parameters under the table . Large breakers of the installation process relatively trouble,
32、 the need for lifting machinery, aircraft in trial operation, should pay attention to double-check circuit and the distribution cabinet. Prevent accidents. Large breakers in the production process, should pay attention to maintaining a timely manner, the abnormal phenomenon should immediately stands
33、 check to see which parts of the machine failure, it should be timely maintenance. To ensure the normal operation of machinery. Jaw Breakers troubleshooting Occurrence 1: Host sudden shutdown (commonly known as: nausea vehicles). Reasons: 1) plug the nesting population, resulting in wholehearted blo
34、cking materials; 2) rotation of the drive shafts round of the 1.30-belt, the belt slipping 3) bear the eccentric shaft sleeve loose, causing the rack no bearing on both sides of the Gap, the eccentric shaft stick, not rotation; 4) at work and low voltage, host encountered Daliao, the inability broke
35、n; 5) bearing damage. Exclude: 1) I plug the removal of nesting, to ensure smooth flow of materials, 2)-tight belt or replacement of 1.30, 3) re-install or replace bear the hub, 4) are at work and for the voltage, so that it operates in line with the mainframe Requirements, 5) the replacement of bea
36、rings. Occurrence 2: Host tank round, moving the jaw in normal operation, but the broken stop work. Reasons: 1) tension spring fault; 2) drawbars fault; 3) loss or plate elbow fracture. Exclude: 1) the replacement of tension spring; 2) the replacement of drawbars 3) re-install or replace the elbow p
37、late. Occurrence 3: output of less than factory standards. Reasons: 1) the hardness or broken materials toughness over the provisions of the Manual, 2) electrical wiring to the anti-location, a host anti-car (a jaw clockwise rotation), or motor triangle to law to access law into astrocytes 3) provid
38、es nesting population is less than the limit, 4) shift the jaw plate, top teeth and tooth relatively Top 5) low-voltage work at the scene; 6) moving the jaw and bearing wear after the gap is too large, so that bearing in outer ring Relative rotation. Exclude: 1) to replace or increase the crusher, 2
39、) the electrical wiring swapped 3) nesting population was adjusted to the provisions of the said statement nesting mouth and Grinding increase for the Breakers, 4) check from the tooth-tooth size, such as To be sub-standard replacement jaw plates, is fixed for the jaw-jaw plate with the activities o
40、f the relative position to ensure that addendum to the tooth root, fixed pinched to prevent displacement; 5) at work and increase the voltage, so as to re-host Contains requirements 6) the replacement of bearings or moving the jaw.鄂式破碎机矿山行业的飞速发展是在近几年才开始的，矿山设备行业也逐渐被带动起来，以前在矿山行业还没有发展到一定规模，选矿厂,选煤厂等行业一般
41、用来破碎的设备都是中小型的，也是近几年来也慢慢由于各个行业的生产能力逐渐增长，这种成产能力已经跟不上生产需要的，许多单位以及厂家对大型破碎设备，矿石设备的呼声越来越强烈。逐渐大型颚式破碎机（大型鄂式破碎机）也就应运而生了。鄂式破碎机简称鄂破，该系列产品具有破碎比大、产品粒度均匀、结构简单、工作可靠、维修简便、运营费用经济等特点。鄂破机(颚破机)广泛运用于矿山、冶炼、建材、公路、铁路、水利和化学工业等众多部门，破碎抗压强度不超过320兆帕的各种物料。 在矿山设备中，大型的颚式破碎机，反击式破碎机的生产能力是显而易见的，这种高能耗，高矿石吞吐量的破碎机一般都用在大型矿石，选煤厂等行业的破碎，目前的
42、大型颚破9001200的大型破在河南没有几家能够生产。该型鄂式破碎机是我公司的主打产品之一，尤其在设计和生产大型鄂式破碎机不论从技术工艺方面来讲，还是从生产能力方面来讲，在国内外已处于绝对领先水平。该机主要用于各种矿石与大块物料的中等粒度破碎，可破碎抗压强度不大于320Mpa的物料，分粗破和细破两种。该系列产品规格齐全，其给料粒度为125mm750mm,是初级破碎首选设备。鄂式破碎机(鄂破)广泛运用于矿山、冶金、建材、公路、铁路、水利和化等行业，它所应用的范围非常的广泛， 鄂式破碎机工作时候，动颚上端直接悬挂在偏心轴上，作为曲柄连杆机构的连杆，由偏心轴的偏心直接驱动，动颚的下端铰连着推力板支撑
43、到机架的后壁上。当偏心轴旋转时，动颚上各点的运动轨迹是由悬挂点的圆周线(半径等于偏心距)，逐渐向下变成椭圆形，越向下部，椭圆形越偏，直到下部与推力板连接点轨迹为圆弧线。由于这种机械中动颚上各点的运动轨迹比较复杂，故称为复杂摆动式颚式破碎机。复摆式颚式破碎机与简摆式相比较，其优点是：质量较轻，构件较少，结构更紧凑，破碎腔内充满程度较好，所装物料块受到均匀破碎，加以动颚下端强制性推出成品卸料，故生产率较高，比同规格的简摆颚式破碎机的生产率高出20-30%；物料块在动颚下部有较大的上下翻滚运动，容易呈立方体的形状卸出，减少了像简摆式产品中那样的片状成分，产品质量较好。鄂式破碎机的结构主要有机架、偏心
44、轴、大皮带轮、飞轮、动鄂、侧护板、肘板、肘板后座、调隙螺杆、复位弹簧、固定鄂板与活动鄂板等组成，其中肘板还起到保险作用。该系列鄂式破碎机破碎方式为曲动挤压型，电动机驱动皮带和皮带轮，通过偏心轴使动鄂上下运动，当动鄂上升时肘板和动鄂间夹角变大，从而推动动鄂板向定鄂板接近，与此同时物料被挤压、搓、碾等多重破碎；当动鄂下行时，肘板和动鄂间夹角变小，动鄂板在拉杆、弹簧的作用下离开定鄂板，此时已破碎物料从破碎腔下口排出，随着电动机连续转动破碎机动鄂作周期性的压碎和排料，实现批量生产。颚式破碎机的破碎腔是有固定的颚板和活动的颚板构成，固定颚和活动颚都衬有锰钢制成的破碎板，破碎板用螺栓固定在颚板上，为了提高
45、破碎效果，两破碎板的表面都带有纵向的波纹，而且凸凹相对，这样，对矿石除有压碎作用外，还有弯曲和剪切的作用。破碎机的工作腔的两侧壁上也装有锰钢衬板，由于破碎板的磨损是不均匀的，其下部磨损较大，为此，往往把破碎板制成上下对称的，以便下部磨损后，将其导致而重复使用，大型鄂式破碎机的破碎板是由许多块儿组合而成，各个都可以互换的，这样可以延长破碎板的使用期限。为了使破碎板与颚板紧密贴合，其间须衬有由可塑性材料制成的衬板，衬垫用锌合金或塑性大的铝板制成，因为贴合不紧密会造成很大的局部过符合，是破碎板损坏，紧固螺栓拉断，甚至还会造成动颚的破裂。活动颚板的摆动是借曲柄双摇杆机构来实现的，曲柄双摇杆机构由偏心轴
46、连杆，前推力板，和后推力板组成，偏心轴装在机架侧壁上的主轴承中，连杆（上连杆头）则装在偏心轴的偏心部分上，前后推力板的一端支撑在下连杆头两侧凹槽中的肘板座上，前推力板的另一端支撑在动颚后壁下端的肘板座上，而后推力板的另一端则支撑在机架后壁的肘板上，当偏心轴通过三角皮带轮从电动机获得旋转动力后，就使连杆产生上下运动，连杆的上下运动又带动推力板运动，由于推力板不断改变倾斜角度，因而使动颚绕心轴摆动，连杆向上运动时进行破碎矿石，当连杆位于下部最低位置时候，推力板与水平线所成的倾斜角度为十度或十二度。鄂式破碎机运行环境:在将巨大石块破碎成小石块的过程中，第一道破碎机通常称为“主”破碎机。历史最长，也
47、最坚固的破碎机是鄂式破碎机。为鄂式破碎机喂料时，物料从顶部入口倒入含有鄂齿的破碎室。鄂齿以巨大力量将物料顶向室壁，将之破碎成更小的石块。支持鄂齿运动的是一根偏心轴，此轴贯穿机身构架。偏心运动通常由固定在轴两端的飞轮所产生。飞轮和偏心支持轴承经常采用球面滚子轴承，轴承的工作环境极为苛刻。轴承必须承受巨大的冲击载荷，磨蚀性污水和高温。尽管此工作环境极为苛刻，鄂式破碎机仍需非常可靠地工作，这是保证生产效率的关键一环。鄂式破碎机性能特点:1.破碎腔深而且无死区，提高了进料能力与产量；2.其破碎比大，产品粒度均匀；3.垫片式排料口调整装置，可靠方便，调节范围大，增加了设备的灵活性；4.润滑系统安全可靠，
48、部件更换方便，保养工作量小；5.结构简单，工作可靠，运营费用低。6.设备节能：单机节能15%30%，系统节能一倍以上；7.排料口调整范围大，可满足不同用户的要求；8.噪音低，粉尘少鄂式破碎机用途和使用范围：1、该系列鄂式破碎机（鄂破）主要用于冶金、矿山、化工、水泥、建筑、耐火材料及陶瓷等工业部门作中碎和细碎各种中硬矿石和岩石用。2、该系列颚式破碎机（颚破）最适宜于破碎抗压强度不高于300MPa（兆帕）的各种软硬矿石，被破碎物料的最大块度不得大于技术参数表所规定。大型破碎机的的安装过程比较的麻烦，需要机器的吊装，在试运行该机时候，应注意仔细检查电路以及配电柜。以防出现意外。大型破碎机在生产过程中
49、应及时注意维护，对出现的异常现象应立即停机进行检查，看是机器的那个部位出现故障，应该及时检修。确保机器的正常运转。颚式破碎机故障排除故障现象1：主机突然停机(俗称：闷车)。原因：1)排料口堵塞，造成满腔堵料；2)驱动槽轮转动的三角皮带过松，造成皮带打滑；3)偏心轴紧定衬套松动，造成机架的轴承座内两边无间隙，使偏心轴卡死，无法转动；4)工作场地电压过低，主机遇到大料后，无力破碎；5)轴承损坏。排除方法：1)清除排料口堵塞物，确保出料畅通；2)调紧或更换三角皮带；3)重新安装或更换紧定衬套；4)调正工作场地的电压，使之符合主机工作电压的要求；5)更换轴承。 故障现象2：主机槽轮、动颚运转正常，但破碎工作停止。原因：1)拉紧弹簧断裂；2)拉杆断裂；3)肘板脱落或断裂。排除方法：1)更换拉紧弹簧；2)更换拉
